Door Mounting Kit, Silver
Rev-A-Shelf's patented door mount kit truly adds a finishing touch to many pullout organizers. The kit allows you to mount your existing cabinet door to any of our RV, 5WB1, 5WB2 and 5CW2 series products. Makes accessing these products truly a 1-step process.
Ends Jun 30
Use Code REVASHELF2606 Expires 6/30/2026
Large Project?
Orders $2500+ Qualify for Special Discounts.
Build your item list and get a Quick Quote
view bid cartAll the product info you could ask for...
-
Size Info
- Width : 1.5 Inch
- Depth : 2.13 Inch
- Height : 8 Inch

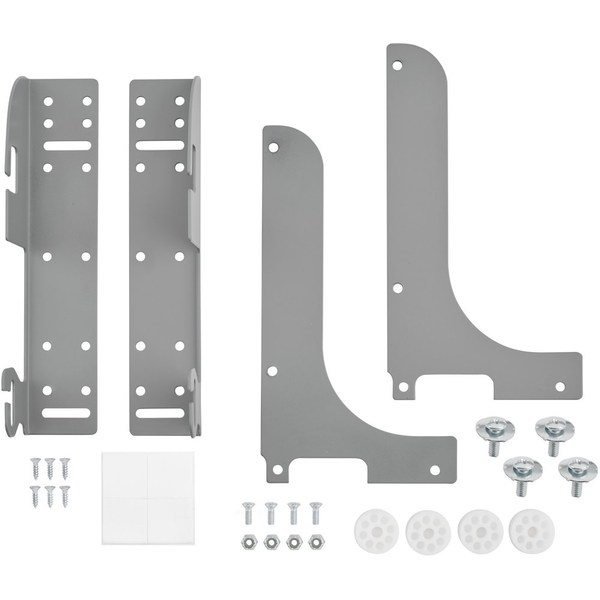

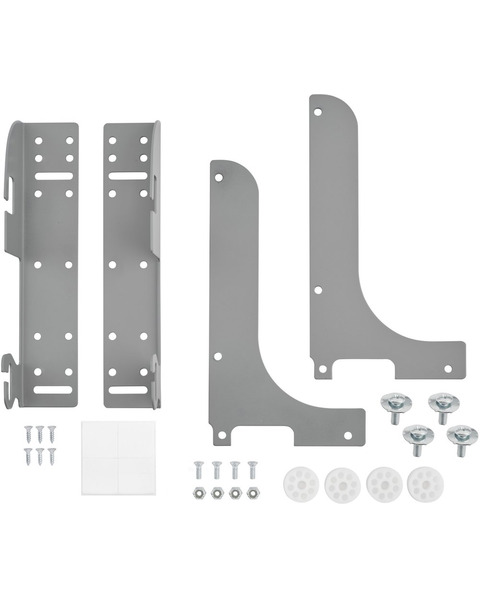

- All Features : Included: (2) door brackets, (2) frame brackets and hardware
Slide Type: 75lb Full-Extension Ball-Bearing Slides
Adjustable brackets can accommodate almost any door style
Works with any of Rev-A-Shelf 5WB2, 5WB1, RV, CO, 59, 5CW2 and RV pull out organizers
Construction: Heavy-Duty Metal frame
Limited Lifetime Warranty - Full Product Dimensions (Millimeters) : 38.1 mm W x 54.102 mm D x 203.2 mm H
- Feature 1 : Adjustable brackets can accommodate almost any door style
-
Manufacturer Info
- Manufacturer : Rev-A-Shelf
- Manufacturer Part # : 5WB-DMKIT
-
Other Important Info
- Product Type : Base Cabinet Organizers
- Sub-Class : Base Cabinet
- Ship Type : Small Parcel
- Keywords : Kitchen, Cabinet Organization, Door mount,
- Weight : 1.495 lbs
- Actual Product Width (Inches) : 1.5
- Full Product Dimensions : 1.5"W x 2.13"D x 8"H
- Actual Product Depth (Inches) : 2.13
- Product Series : W7 - Door Mount Kits
- Actual Product Height (Inches) : 8
- Color : Silver
- Actual Product Weight (lbs) : 1.5
- Material : Steel
- Actual Product Width (Millimeters) : 38.1
- Country of Origin : China
- Actual Product Depth (Millimeters) : 54.102
- Contains Wood : No
- Actual Product Height (Millimeters) : 203.2
- Material Breakdown : Steel;
- Material Breakdown % : 100;
- Actual Product Weight (Kilograms) : 0.675
- Includes : (2) door brackets, (2) frame brackets and hardware
- Primary Color : Silver
- Gas Assist : No
- Warranty : Limited Lifetime Warranty
- Material Bre : Steel;
- Slides : No
- Soft Close : No
Manufacturer Resources
-
Helpful Videos
-
Installation Help
Other - 5W Series Pullout Chrome Baskets by Rev-A-Shelf
Our customers say Rev-A-Shelf products...
based on 419 ratings
- 2 of 5 9” Minimum Opening Concern June 16th, 2026
by Stephen from Encinitas, CAI found the product itself very sturdy and of high quality. However, the minimum requirement of 9” is incorrect if you also purchased the hardware to attach the face of a cabinet door. The hardware that must be attached to the sides of front sides of the unit increase the total width of the unit and made the total width approximately 9-1/2”, which made it too wide for my 9-1/4” wide cabinet opening. For that reason, I had to return it. There is a 35% restocking fee, which I will dispute, because the company clearly says it only takes a 9” opening for it to work. I am still waiting on my refund, and I returned it over a week ago. Like I said previously, it’s a very solid and high quality unit, but the company needs to say in the product description that if you plan to purchase and add the hardware to attach to a cabinet door, you will need about a 10” cabinet opening for it to work.
- 4 of 5 That's good stuff September 2nd, 2025
by Matthew from Port Angeles, WAWound up not using.
- 3 of 3 people found the following review helpful
5 of 5 Easy to install February 10th, 2021
by Charles from Connell, WAThese were made for Drawer Face for Idiots book readers,. and well thought out made for quick and easy assembly. Just install and cut out you drawer face and screw on with the supplied screws. So simple.
- 5 of 5 great mounting kit March 20th, 2024
by Sabrina from Charlottesville, VA(no comment given)
- 0 of 1 people found the following review helpful
2 of 5 Assembly December 16th, 2022
by Beth from Bryson City, NCThe directions did not work. The screws were too short to attach the bracket.
