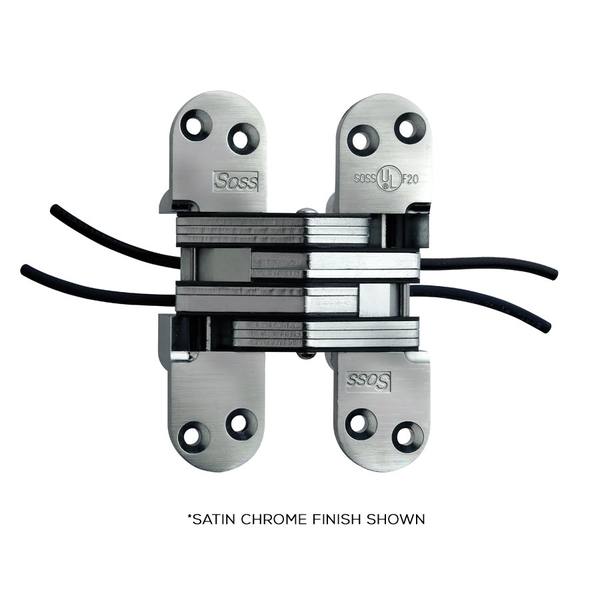

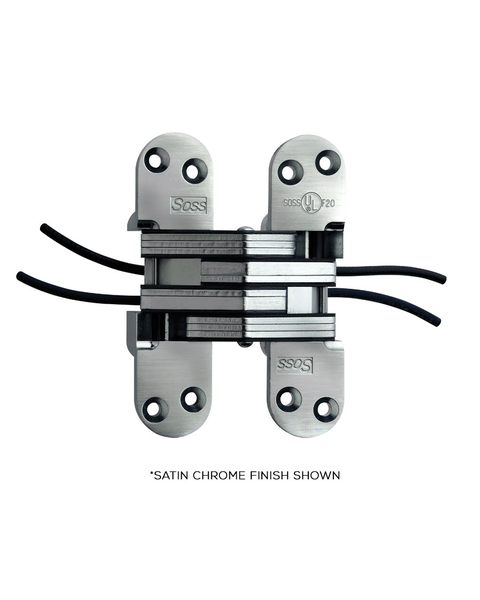

#218 Power Transfer Invisible Hinge Satin Nickel
Beautiful when open...Invisible when closed. Soss hinges for designed to provide security, strength and safety
Ends Jun 30
Save more! Buy a Pro Pack.
Large Project?
Orders $2500+ Qualify for Special Discounts.
Build your item list and get a Quick Quote
view bid cartAll the product info you could ask for...
-
Size Info
- Minimum Door Thickness : 1-3/4"
-
Manufacturer Info
- Manufacturer : Soss
- Manufacturer Part # : 218PTUS15
- Manufacturer Finish : US15
-
Other Important Info
- Model # : 218PT4
- Product Type : Power Transfer Invisible Hinge
- Product Finish : Satin Nickel
- Material : Zinc Body with Steel Pins and Links
- Key Features : Invisible from either side when closed
Moving pivot point remains inside hinge during travel
Deep mortise of hinge assures a strong installation
Ability to send power through the hinge
UL listed for use on hollow metal, sheet metal, tin clad, steel composite or wood core swinging type fire doors & frames with 20 minute ratings - Wire Length Supplied : 4' on one side & 1' on the other
- Max Amperage @ 20VDC : .4 Amps
- Max Weight Capacity : 35 lbs
- Includes : (1) Hinge
