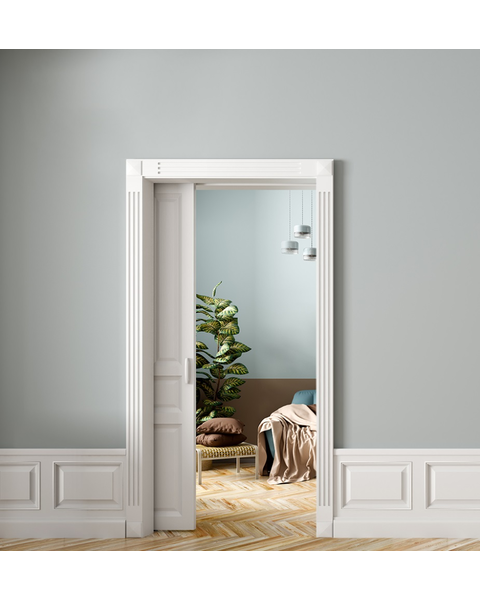

Recessed Sliding Pocket Door System with Soft-Close for 176 lbs Max Door Weight, Track Sold Separately
Our Item Number SUG-FD80PD-RM2-RT
Sugatsune has created a solution for stuck pocket doors. This two-track system means all components are easily accessible from the opening. Never break another wall when making adjustments to your pocket door. Available in recessed and surface mount retail box kits.
$
363.38 Each
$427.50
SAVE 15%
Ends Jun 21
Ends Jun 21
Product Info Weight: 10.29 lbs, See more product details
Large Project?
Orders $2500+ Qualify for Special Discounts.
Build your item list and get a Quick Quote
view bid cartAll the product info you could ask for...
-
Size Info
- Maximum Door Width : 30-7/8 - 59-1/16 Inch (784-1500 mm) [98-7/16 Inch (2500 mm) or less in height]; 33-7/16 - 59-1/16 Inch (850-1500 mm) [98 7/16 - 106-5/16 (2501-2700 mm) in height]
- Maximum Door Height : 106-5/16 Inch (2700 mm)
- Minimum Door Thickness : 1-13/16 Inch (30 mm)
- Includes : Two-Way Soft Close Roller system & Front Roller, Pocket & Front Trigger, Floor Guide, Bottom Guide Door Rail 59" (1500mm), Hanging Brackets and end caps (recessed mount only)
-
Manufacturer Info
- Manufacturer : Sugatsune
- Manufacturer Part # : FD80DHCHP-PD
-
Other Important Info
- Product Type : Pocket Door Hardware
- Weight : 10.29 lbs
- Key Features : Easy installation and maintenance
Built in soft-close and soft-open damper.
Two-rail system, allows all components to be fixed or adjusted through the opening without breaking the pocket (Sold Separately).
Use with removable jam/trim/casing.
For interior use only.
Rollers are surface mounted to top of door.
High durability, passed 200,000 cycle test (private). - Maximum Door Weight : 176 lbs (80 kg)
Manufacturer Resources
Aluminum Track (1 Required for Installation)
