Lateral Opening Door System for Max Door Height 117-5/16 Inch, White
Our Item Number SUG-LIN-X800H-WT-S
Since 1930, Sugatsune has been a trusted source worldwide for developing precision-engineered unique hardware solutions. They carry products to support commercial, marine, and residential applications, including door and industrial cabinet hardware and hinge hardware products.
$
1407.60 Set
$1,656.00
SAVE 15%
Ends Sep 19
Ends Sep 19
Maximum Door Width:
Maximum Door Height:
Product Info Weight: 41.28 lbs, Material: Steel, Aluminum, Product Finish: White, See more product details
Large Project?
Orders $2500+ Qualify for Special Discounts.
Build your item list and get a Quick Quote
view bid cartAll the product info you could ask for...
-
Size Info
- Key Features : Lateral Opening Mechanism: Allows doors to swing out laterally in a small radius, ideal for tight front space application.
4-Way Adjustable: Vertical, horizontal, depth and parallel adjustment.
Smooth Movement: Built-in dampers provide a smooth soft-closing movement.

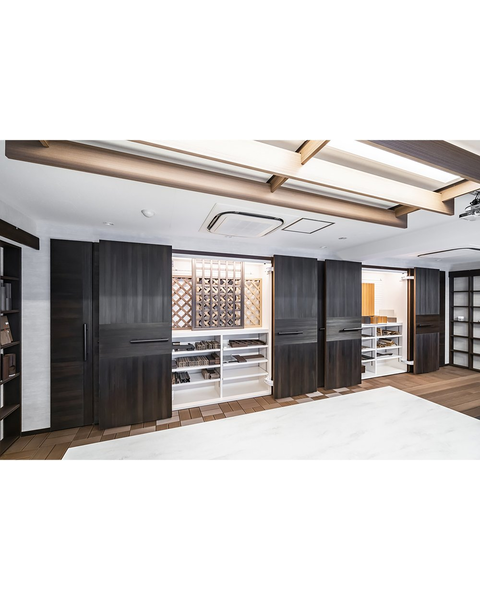

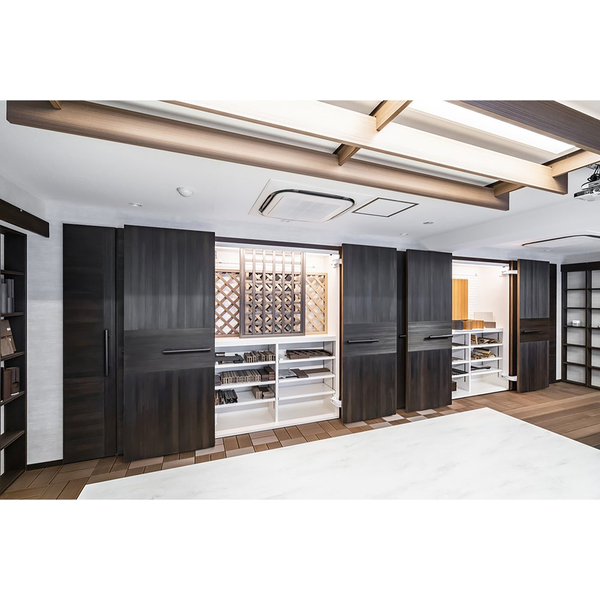

Use in various applications: Ideal for closet entryways, large pantry doors, storage, hidden rooms, etc. Can also be used on L shaped corner spaces.
Hardware is non-handed: can be used for left- or right-opening doors.
Designed for overlay installation, but can be installed flush with the surrounding cabinet or wall. Please contact customer service for details on inset installations - Maximum Door Width : 117-5/16 Inch
- Maximum Door Height : 117-5/16 Inch (2980 mm)
- Door Width : 29-1/2 - 33-7/16 Inch (750-850 mm)
- Door Thickness : 15/16 - 1-9/16 Inch (24 - 40 mm)
-
Manufacturer Info
- Manufacturer : Sugatsune
- Manufacturer Part # : LIN-X800H-WT
-
Other Important Info
- Product Type : Lateral Opening Door System
- Weight : 41.28 lbs
- Material : Steel, Aluminum
- Product Finish : White
- Maximum Door Weight : 88 lbs (40kg)/Door
Manufacturer Resources
-
