Sugatsune Light Duty Left to Right Opening Co-Planer Flush Sliding Door System, Push-In Soft Open and Close, Door Widths 31-1/2" to 47-1/4", 1-3/16" to 1-9/16" Thickness

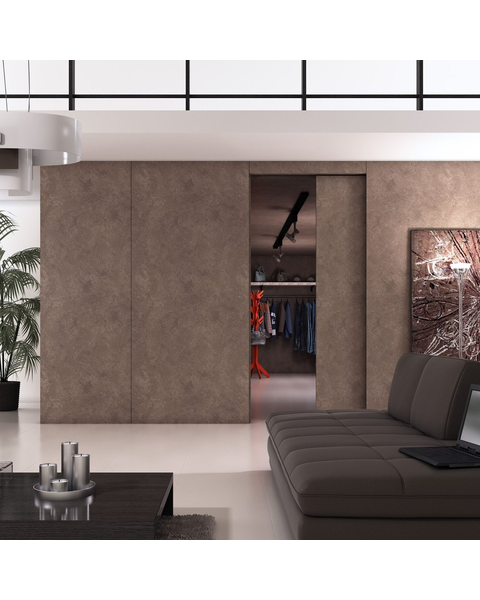

The Sugatsune MFU1200 is a true coplanar sliding door system designed to deliver a clean, flush appearance when the door is closed. Unlike traditional sliding or bypass hardware where the door overlaps or sits proud of the wall, the MFU1200 allows the door face to align perfectly in the same plane as the surrounding surface. The mechanism gently moves the door outward and then sideways when opened, maintaining a sleek, architectural look while providing smooth, controlled operation. It is an excellent solution for modern spaces where a seamless, minimal design is a priority.
Ends Jun 21
Type:
Opening Type:
Large Project?
Orders $2500+ Qualify for Special Discounts.
Build your item list and get a Quick Quote
view bid cartAll the product info you could ask for...
-
Size Info
- Key Features : Designed to CLOSE FLUSH against surrounding walls, providing clean appearance.
UNIQUE MOVEMENT: Recesses in, and then slides sideways.
CLEAN APPEARANCE: No floor tracks required on MFU-System.
Excellent performance, reliable and fully adjustable.
Features two way damper to avoid slamming open or closed.
DURABILITY: High durability, passed 100,000 open/close cycle test (private). - Maximum Door Height : 106-5/16 Inch (2700 mm)
- Door Width : 31-1/2 - 47-1/4 Inch (800-1200 mm)
- Door Thickness : 1-3/16 - 1-9/16 Inch (30-40 mm)
- Adjustability : Depth: +/- 3.5 mm (1/8 Inch); Horizontal: +/-4 mm (3/16 Inch); Vertical: +/-4 mm (3/16 Inch)
-
Manufacturer Info
- Manufacturer : Sugatsune
- Manufacturer Part # : MFU1200-40-L
-
Other Important Info
- Product Type : Flush Sliding Door
- Weight : 15.86 lbs
- Material : Metal
- Type : Light Duty
- Door Weight : 44-88 lbs (20-40 kg)
- Opening Type : Left to Right
