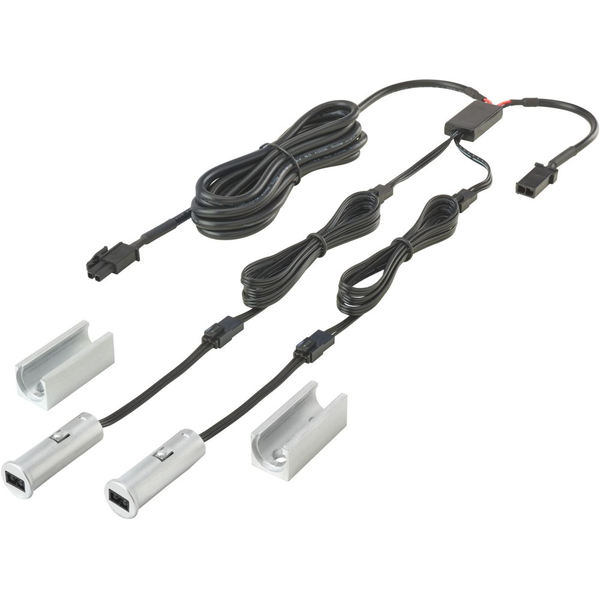

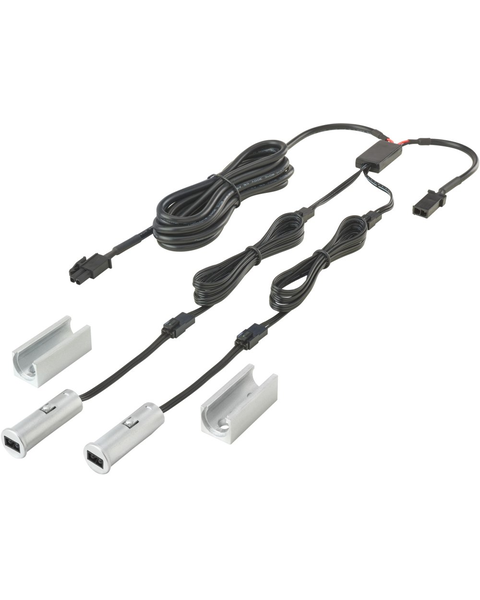

Tresco Round Two Door Sensor for 12V and 24V Systems, Surface or Recess Mounting, Up to 2 Inch Sensor Range, Nickel

Product Discontinuation AlertThis item has left our catalog. It's either upgraded to a newer model, didn't meet our high customer satisfaction standards, or the manufacturer said goodbye. But don't worry, CabinetParts is always here with top-notch alternatives.


All the product info you could ask for...

  • Size Info

  • Product Length : 1-7/16 Inch
  • Product Diameter : 1/2 Inch
  • Input Cord Length : 79 Inch
  • Sensor Range : 0.08-2 Inch
  • Warranty : 3-Year Commercial-Grade Warranty
  • Key Features : 79" (2 m) input cord and 6" (152 mm) output cord attached
    Controls all Tresco 12/24VDC single color dimmable low voltage lights
    Improved smaller design allows controllers to be easily recessed using a 1/2" (13 mm) drill bit
    Recess or surface mount with included surface mount clip
    The addition of small connectors allow for wire shortening and easier wire management during install
    Either door open, light on; both doors closed, light off-Sensor Range: 1/16" â?? 2" (2 mm â?? 50 mm)

  • Manufacturer Info

  • Manufacturer : Tresco by Rev-A-Shelf
  • Manufacturer Part # : L-RSDS2-NI-1
  • Manufacturer Finish : Nickel

  • Other Important Info

  • Product Type : Power Supply
  • Country of Origin : China
  • Product Finish : Silver
  • Mount Type : Recess/Surface
  • Voltage : 12/24 V DC
  • Wattage : 60 W/96 W
  • Includes : (1) Power Supply
  • Number of Door Sensors : 2

  • Manufacturer Resources
