Omni Track Installation: 4 Easy Steps to Install

Step 1: Order Tracks

Determine the desired location of the Omni Track Wall Track and temporarily position on the wall using two special installation nails. Measure 4mm below the desired location of the top edge of the track. Install each nail into the drywall on a straight horizontal line at least 12” from each end of the track to permit lateral movement.

Wall Track Sizes

97" Wall Track (Can be cut to any size)

97" Wall Track Kit (includes wall track, screws, nails, and edges)

48" Wall Track Kit (includes wall track, screws, nails, and edges)

Step 2: Place Wall Track on Nails

Use self-drilling Truss Head screws to secure Wall Track to studs. Insert screws only into the top and bottom channel of the track, keeping the center channel open. Position the channel found at the top back of the Wall Track over the Installation Nails in the wall. The Wall Track can now be temporarily hung and repositioned left or right.

Step 3: Choose Edge Type

Finish exposed ends of the Wall Track using edge profile. Two options are available.

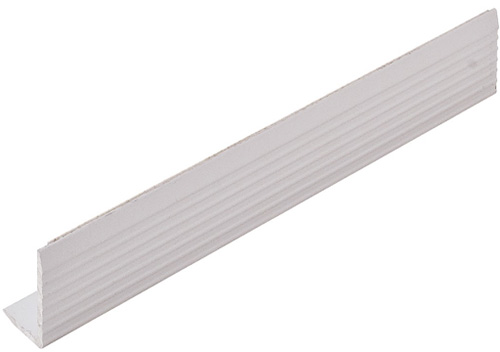

A. Extruded Aluminum Edge Profile used on either single or stacked tracks. Cut the profile to the desired length and install peel and stick Mounting Tape on back. Position Edge Profile on the Wall Track and apply pressure to secure. Tape cures within 72 hours at room temperature.

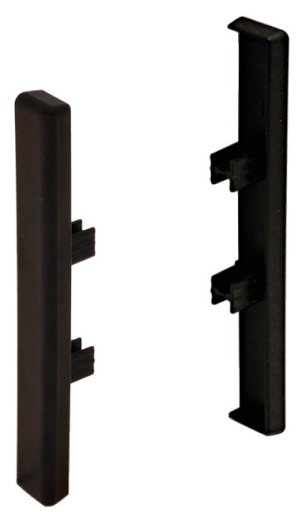

B. Plastic Edge Profiles used for single track applications: Push tabs into the ends of the track.

STEP 4: CHOOSE YOUR ACCESSORIES

We offer a wide selection of storage hooks and bins to fit your needs. Do you need to store your lawn care items? Are you crafting some space to hold your tools? Searching for a place to hold your sports gear? Look no further. We have everything you need.

STORE YOUR ITEMS WITH HOOKS AND BINS

• Shovels
• Hose
• Tools
• Bikes
• Brooms
• Rakes
• Sports Gear
