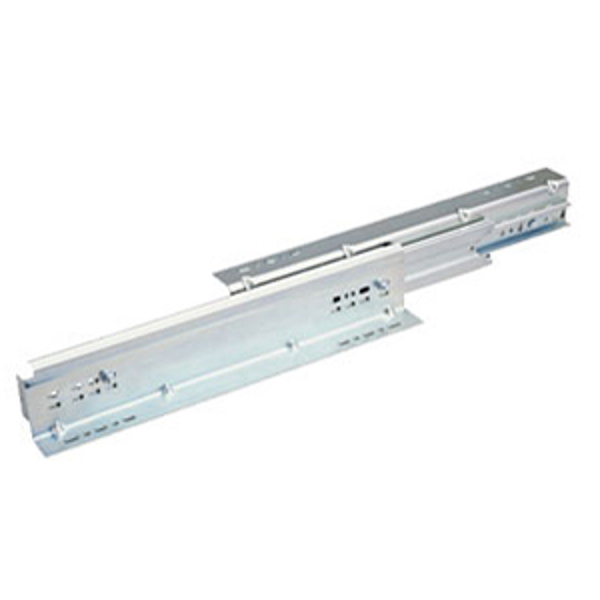

Accuride 9301 Bracket Kit 16"
Rating 4.6 | 1,250 Reviews | Our Item Number AC4180-16
Simplifies and expands platform mounting options such as pull out boxes, trays, storage drawers for kitchens or entertainment cabinetry; equipment or tool storage units.
$
93.18 Set
$88.52/ea for 20
Length:
Need Help? Contact Us Now
Product Info Length: 16", Load Rating: 500 lbs, Product Finish: Clear Zinc, See more product details
or
Packs ™Save more! Buy a Pro Pack.
Large Project?
Orders $2500+ Qualify for Special Discounts.
Build your item list and get a Quick Quote
view bid cartAll the product info you could ask for...
-
Size Info
- Length : 16"
-
Manufacturer Info
- Manufacturer Series Name : 9301
- Manufacturer Part # : 4180-0472-XE
- Manufacturer : Accuride
-
Other Important Info
- Key Features : Bracket Kits Provide 6 Additional Mounting Configurations
- Load Rating : 500 lbs
- Notes : Load Rating Specifications
Bracket Mounted Drawers Up To 18" Wide-500 lbs
Bracket Mounted Drawers Up To 42" Wide-350 lbs - Product Finish : Clear Zinc
- Product Type : Accessory Platform Bracket Kit
- Sold : Kit Comes With 2 Brackets & Mounting Hardware
