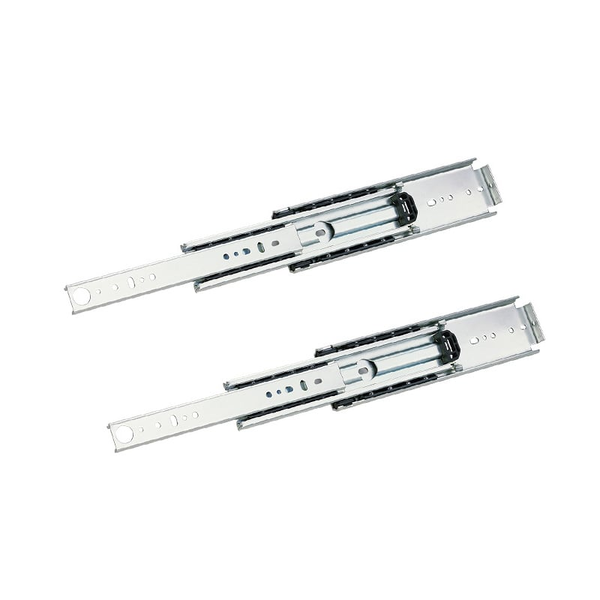

Accuride 9301 Heavy Duty 20" Length Manual Closing Full Extension Side-Mounted Slide, 500 lb. Maximum Load Rated, 39mm (1-17/32") Overall Side Space Required, Zinc
Rating 4.7 | 39 Reviews | Our Item Number AC-930120
Well suited for large pantry pull outs, vehicular storage and wide, heavy drawers, the 9301 features full extension, a load rating of up to 500lbs depending upon application and a clear zinc finish.
$
168.58 Pair
$160.15/ea for 20
$280.06
SAVE 40%
Ends Jun 30
Ends Jun 30
Length:
Need Help? Contact Us Now
Product Info Length: 20 inch, Travel: 20", Extension: Full, Load Rating: 500 lbs, Product Finish: Clear Zinc, See more product details
or
Packs ™Save more! Buy a Pro Pack.
Large Project?
Orders $2500+ Qualify for Special Discounts.
Build your item list and get a Quick Quote
view bid cartAll the product info you could ask for...
-
Size Info
- Length : 20 inch
- Travel : 20"
-
Manufacturer Info
- Manufacturer Series Name : 9301
- Manufacturer Part # : C9301-20P
- Manufacturer : Accuride
-
Other Important Info
- Extension : Full
- Key Features : Silenced Opening & Closing
Optional Platform Bracket Kit Allows For Bottom & Side Mounting
Non Disconnect - Load Rating : 500 lbs
- Product Finish : Clear Zinc
- Product Type : Drawer Slide: Full Extension
- Includes : (1) pair of drawer slides
- Extension / Motion Feature : Full Extension / Standard
- Notes : Load Rating Specifications: Moderate Applications-500 lbs
Frequent Use Applications-400 lbs
Mobile Applications-300 lbs
Flat Mount Applications-150 lbs - Closing Type : Manual
