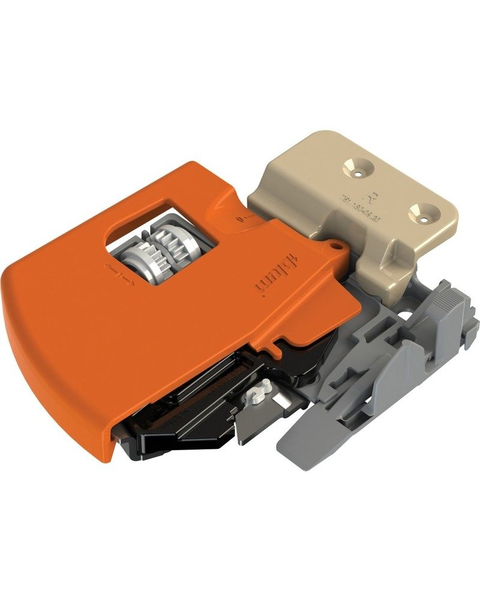

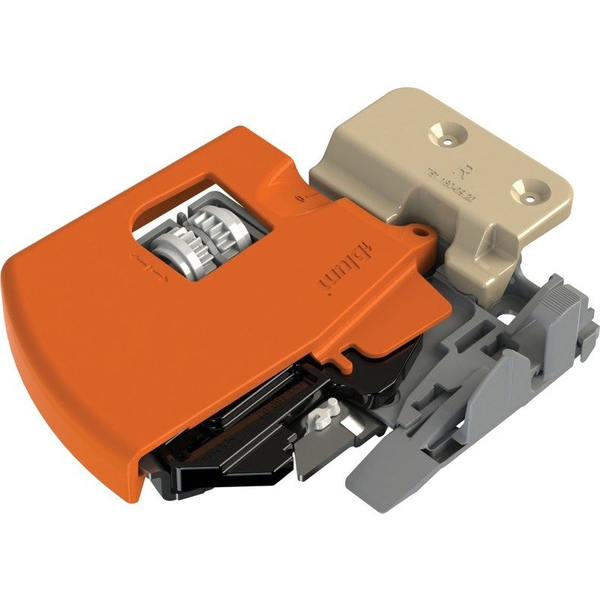

Tandem 563/569 Locking Device, Left Hand, Up and Down & Side-to-Side Adjustment, Vertical Mount Application
Rating 4.7 | 1,254 Reviews | Our Item Number BST51.1901.20L
Build custom solutions that allow you to get the most out of your space. TANDEM glides are versatile, making a solution for a range of storage needs from deep and wide drawers, specialized pantry storage to custom corner options. Since the runners are concealed under the drawer, they never interfere with style or design.
$
2.57 Each
$3.67
SAVE 30%
Ends Jul 18
Ends Jul 18
Hand:
Need Help? Contact Us Now
Product Info Blum ID Number: 03675374, Series: TANDEM, Hand: Left, See more product details
Large Project?
Orders $2500+ Qualify for Special Discounts.
Build your item list and get a Quick Quote
view bid cartAll the product info you could ask for...
-
Size Info
- For Use With : Designed for 13 (1/2 Inch) drawer bottom recess
- Maximum Inside Drawer Width : 170 mm (6-11/16 Inch)
- Side Adjustment : Side-to-side adjustment ±1.5 (1/16 Inch)
- Height Adjustment : Height adjustment +3 (1/8 Inch)
- Adjustment : 2D (Height +3mm, Side-to-side adjustment ±1.5mm)
- Thickness : Minimum sub-front thickness 16 mm (5/8 Inch)
-
Manufacturer Info
- Manufacturer : Blum
- Manufacturer Part # : T51.1901.20
-
Other Important Info
- Product Type : Locking Device: Standard NON-Side Adjustable
- Blum ID Number : 03675374
- Key Features : TANDEM vertical mount left locking device with side-to-side adjustment
Vertical mount locking device used to minimize sub-front splitting
One right and one left required per drawer
Captive right device and self-aligning left device
Self-adjusting drawer length tolerance
Steel base with synthetic, spring-loaded release levers - Series : TANDEM
- Mounting Type : Vertical Mount
- Hand : Left
