Hinges Lid and Flap Stays AVENTOS HK-XS & Tip On Stay Lift System By Blum

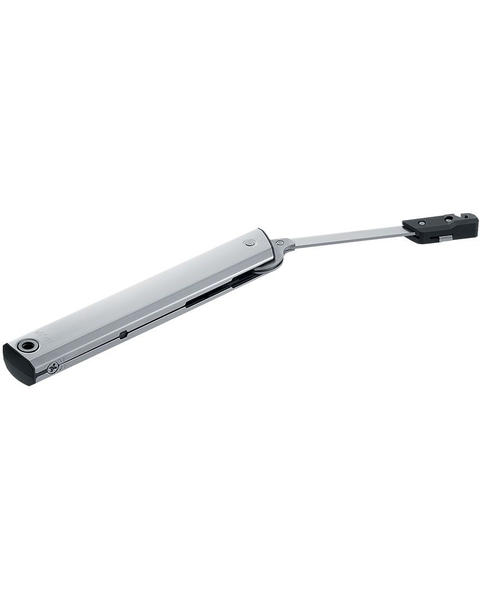

Loading from Primary Photo

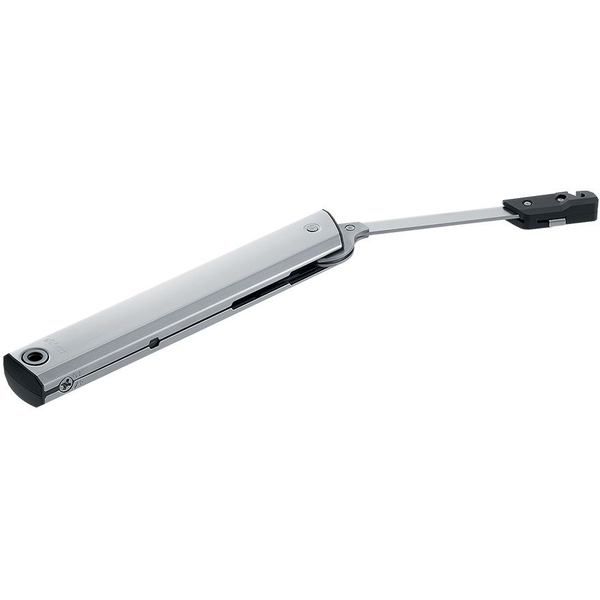

Aventos HK-XS Lift System, Power Factor 61 to 112 Each, for Cabinet Heights 9-3/8 Inch to 24 Inch, Cabinet Widths 25 Inch to 72 Inch, Requires Cabinet and Door Mounting Plates and Top Hinges

  Rating 4.4 | 147 Reviews in the past 24 months | Our Item Number BA20K1301

The Blum Aventos HK-XS lift system is a compact, space-saving solution designed for small wall cabinets with upward-opening doors. It is ideal for shallow cabinets and lightweight fronts, providing smooth and effortless motion. Each system requires a lift mechanism, cover caps, and a set of hinges and mounting plates. The appropriate strength is determined using Blum's power factor formula (cabinet height × door weight, including handle) to ensure reliable function. For handle-less applications, the HK-XS is also available with TIP-ON mechanical push-to-open technology. This system combines clean design, quiet performance, and dependable function, making it ideal for compact kitchens, bathrooms, or utility spaces. For face frame construction, use the BA20K5501 Face Frame Mounting Bracket, or block out the cabinet sides flush with the face frame edge.

$
16.90
$16.39/ea for 5
$24.14
SAVE 30%
Ends Oct 07

Power Factor:

Product Info See more product details

Need help buying the perfect lift system? Visit our Aventos Lift System - Automated Parts Builder for a complete and easy guide to creating your own Lift System.
Qty:
  or
PRO Packs ™
Save more! Buy a Pro Pack.



Large Project?

Orders $2500+ Qualify for Special Discounts.

Build your item list and get a Quick Quote

view bid cart
Compare this item

All the product info you could ask for...

  • Size Info

  • Power Factor Computation : Power Factor = Cabinet Door Weight (lbs)× Height (inches
  • Power Factor Example : 20 inch Door Height x 8 lb Weight =160 Power Factor
  • Cabinet Height : 9-3/8 Inch - 24 Inch
  • Cabinet Width : Up to 72 Inch
  • Interior Depth : At least 5 Inch

  • Manufacturer Info

  • Manufacturer : Blum
  • Manufacturer Part # : 20K1301

  • Other Important Info

  • Product Type : HK-XS Lift Mechanism
  • Includes : (1) Lift Mechanism
  • Power Factor Range for 1 Lift : 61 -112
  • Power Factor Range for 2 Lifts : 121 - 224
