Aventos HL Top Parallel Lift System for Cabinet Heights 15-1/4 to 22-3/4 Inch and Door Weights 4.4 to 30.9 Lbs, Requires HL Arm Assemblies and Cover Plate Set
AVENTOS HL is a lift-up system for single-panel fronts on medium to tall wall cabinets, including those above refrigerators or pantry units. The front lifts upward in a parallel motion, staying out of the way while providing full access. Like all Blum AVENTOS systems, HL delivers smooth, adjustable motion and long-lasting performance. These units mount to the cabinet sides. For face frame construction, use the BA22L6001 Face Frame Mounting Bracket, or block out the cabinet sides flush with the face frame edge. AVENTOS HL requires additional components such as lift mechanisms, arms, and cover caps. To ensure all necessary parts are included, use our automated parts builder by clicking the “Need help buying the perfect lift system?” link below.
Ends Aug 14
Power Factor:
For Cabinet Heights:
Need help buying the perfect lift system? Visit our Aventos Lift System - Automated Parts Builder for a complete and easy guide to creating your own Lift System.
Large Project?
Orders $2500+ Qualify for Special Discounts.
Build your item list and get a Quick Quote
view bid cartAll the product info you could ask for...
-
Size Info
- For Cabinet Heights : 15-1/4 - 22-3/4 Inch
- Minimm Internal Cabinet Depth : 264 mm
-
Manufacturer Info
- Manufacturer : Blum
- Manufacturer Part # : 22L2500
- Manufacturer Finish : Zinc Coated
-
Other Important Info
- Product Type : Lift Mechanism
- Power Factor : 390-580 (with 2 pieces)
- Product Finish : Zinc
- Cabinet Weight : 4.4 - 30.9 lbs
- Hand : Non-handed

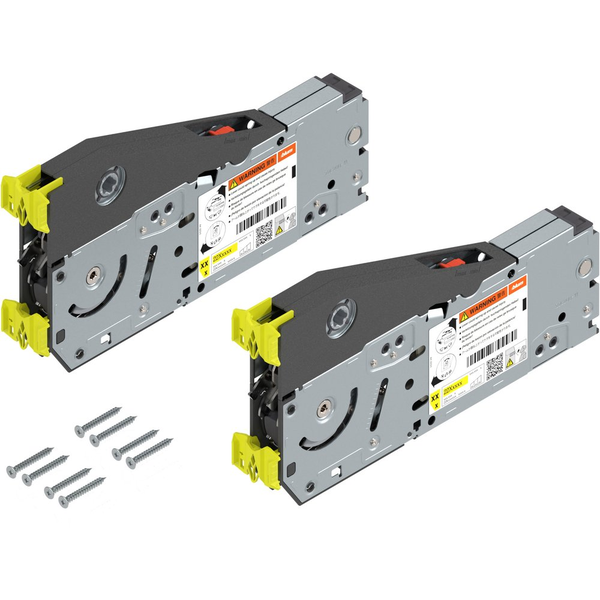

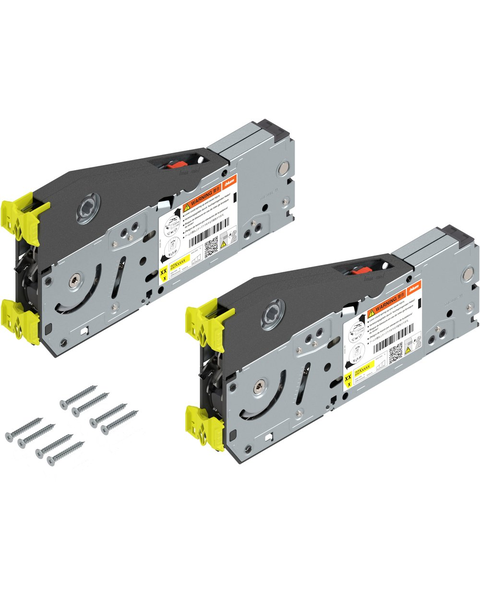

- Included : 2 per set (2 lift mechanisms, 8 screws)
- Cabinet Attachment Type : Screw-on
Manufacturer Resources
-
Helpful Videos
-
HL Top Assembly -
HL Top Installation
Required for Installation
Other - AVENTOS HL Lift Up System & SERVO-DRIVE by Blum
Our customers say Blum products...
based on 147 ratings
- 3 of 5 Bulky and difficult to actually install August 27th, 2025
by Michael from Miami Beach, FLThese are the hinges of an overall system for an uplift door. The hinges themselves are bulky and take up a lot of space. Attaching the arms is tricky but doable. You have to cut a rod to a precise size to fit between them - so you need to be prepared for that. The most complicated bit is that they sell them WITHOUT the mounting clips that go on the doors - so be sure to buy those - cheap too (like $5) and they break so buy extra. Biggest complaint - where to attach the mounting clips on your doors - there is no template, the measurements are frustrating, the adjustments are limited so you have to get it exactly right more or less. I wasted two doors with holes to figure out the exact position I needed - that's an extra $400 in expense I didn't count on. No customer service. I called for some help and they just tell you to call Blum, the manufacturer.
