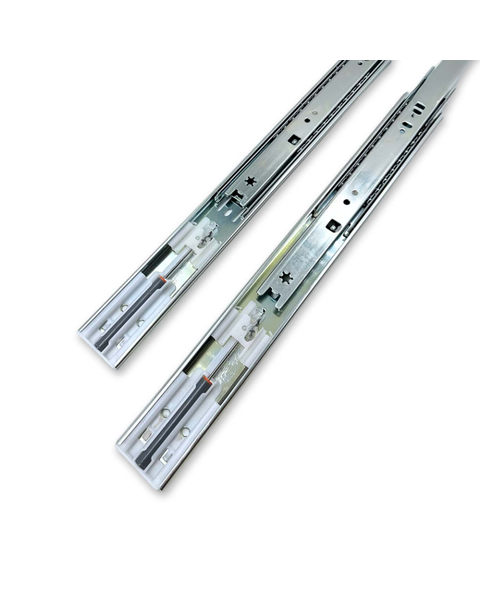

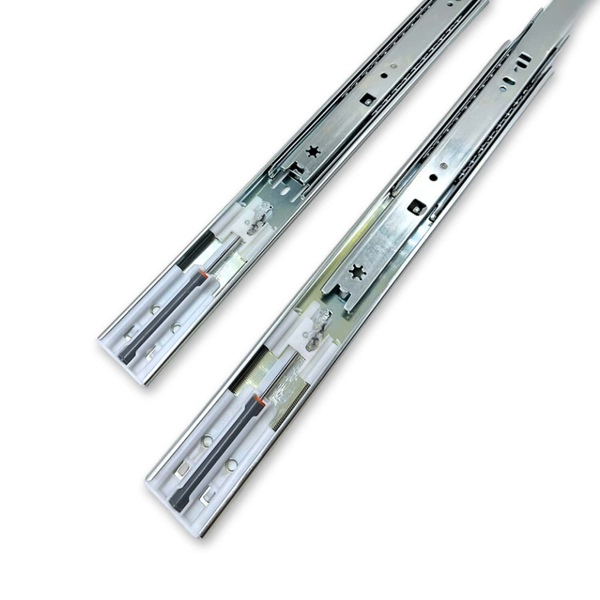

VLS2.0 Soft Close 12 Inch Length / 10-3/8" Travel Side Mounted Ball Bearing Drawer Slide
Cabinetparts VLS 2.0 Side Mount Drawer Slides deliver smooth full extension, soft-close performance, and a sturdy 90 lb load capacity. For face frame cabinets, rear mounting brackets (sold separately) are required. In frameless cabinets, slides mount directly to the interior sides. The drawer width should be 1" to 1-1/16" less than the opening width for optimal Soft Close functionality
Ends Jun 12
Compatible Drawer Length:
Save more! Buy a Pro Pack.
Large Project?
Orders $2500+ Qualify for Special Discounts.
Build your item list and get a Quick Quote
view bid cartAll the product info you could ask for...
-
Size Info
- Actual Slide Length (Inches) : 11-13/16 Inch
- Actual Slide Length (mm) : 300mm
- Required Internal Cabinet Depth (mm) : 304mm
- Required Internal Cabinet Depth (Inches) : 12 Inch
- Travel (mm) : 263.8mm
- Travel (Inches) : 10-3/8 Inch
- Length : 12 Inch
- Required Side Clearance (R+L) : 1-1/16 Inch
-
Manufacturer Info
- Manufacturer Part # : VLS2-S12-SC
-
Other Important Info
- Series : VLS Cabinetparts 2.0 Sidemount Drawer Slide
- Product Type : Drawer Slide: Full Extension
- Closing Type : Soft Closing
- Load Rating : 90 lbs
- Extension : Full
- Material : Steel
- Product Finish : Zinc Plated
- Includes : (1) pair of drawer slides, mounting screws
Manufacturer Resources
-
Helpful Videos
-
Disconnect VLS 2.0 Side Mount Drawer Slides -
How to Install Locking Devices on VLS 2.0 -
How to Assemble a Dovetail Drawer Box: Step-by-
Required For Face Frame Cabinet Installation
Other - VLS Full Extension Slides
Our customers say CabinetParts products...
based on 213 ratings
- 1 of 1 people found the following review helpful
3 of 5 Jamb up July 2nd, 2025
by stephen from CItrus Heights, CAThese are heavy duty, but sometimes one side of the soft close will jamb up if the drawer is closed too fast, slightly offset or if they are impeded. You need to remove the drawer to reset.
- 1 of 1 people found the following review helpful
4 of 5 Good Enough June 25th, 2025
by Vivienne from Monona, WIThe reason you consider these glides, is that they are 1/3 cheaper than other glides. No shame. They work well enough for lots of projects, particularly shop projects. But they are not as smooth as euro glides. Every other glide in my house is a BLUM undermount, and the Blum glides are head and shoulders nicer glides, they also cost significantly more. And they don't make a side mount glide. These are satisfactory. Not ideal, not WOW, but good enough.
- 5 of 5 Excellent Product! November 12th, 2024
by Victoria from Silver City, NMPleased with the product quality and performance
- 5 of 5 Owner September 13th, 2024
by David from Fort Worth, TXImmediate shipping, quality product. I'm very satisfied, thank you.
- 33 of 33 people found the following review helpful
5 of 5 12" Soft close drawer slides November 18th, 2018
by Paul from Batavia, ILI purchase 7 pair of the value line soft close slides and they work as advertised. The one thing I didn't notice when I purchased the slides is that the screws were not included.
