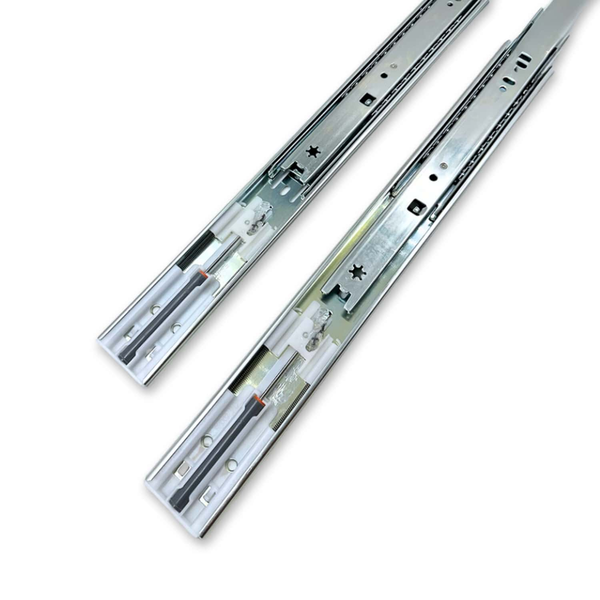

VLS2.0 Soft Close 16 Inch Length Side Mounted Full Extension Ball Bearing Drawer Slide

  Rating 4.6 | 223 Reviews in the past 24 months | Our Item Number VLS2-S16-SC

Cabinetparts VLS 2.0 Side Mount Drawer Slides deliver smooth full extension, soft-close performance, and a sturdy 90 lb load capacity. For face frame cabinets, rear mounting brackets (sold separately) are required. In frameless cabinets, slides mount directly to the interior sides. The drawer width should be 1" to 1-1/16" less than the opening width for optimal Soft Close functionality

$
11.24 Pair
$10.90/ea for 10
$16.06
SAVE 30%
Ends Oct 07

Compatible Drawer Length:

Need Help? Contact Us Now
Product Info Travel (mm): 401mm, Length: 16 Inch, Closing Type: Soft Closing, Load Rating: 90 lbs, Extension: Full, See more product details
Qty:       Pair
  or
PRO Packs ™
Save more! Buy a Pro Pack.



Large Project?

Orders $2500+ Qualify for Special Discounts.

Build your item list and get a Quick Quote

view bid cart
Compare this item

All the product info you could ask for...

  • Size Info

  • Actual Slide Length (Inches) : 15-3/4 Inch
  • Actual Slide Length (mm) : 400mm
  • Required Internal Cabinet Depth (mm) : 404mm
  • Required Internal Cabinet Depth (Inches) : 15-15/16 Inch
  • Travel (mm) : 401mm
  • Travel (Inches) : 15-13/16 Inch
  • Length : 16 Inch
  • Required Side Clearance (R+L) : 1-1/16 Inch

  • Manufacturer Info

  • Manufacturer Part # : VLS2-S16-SC

  • Other Important Info

  • Series : Cabinetparts VLS 2.0 Sidemount Drawer Slide
  • Product Type : Drawer Slide: Full Extension
  • Closing Type : Soft Closing
  • Load Rating : 90 lbs
  • Extension : Full
  • Material : Steel
  • Product Finish : Zinc Plated
  • Includes : (1) pair of drawer slides, mounting screws

  • Manufacturer Resources
