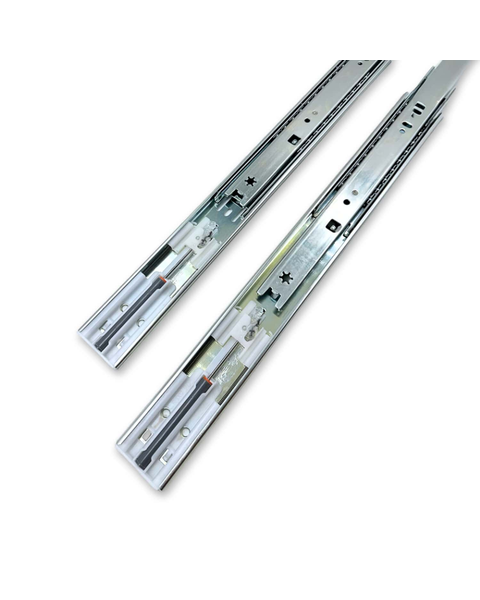

VLS2.0 Soft Close 16 Inch Length Side Mounted Full Extension Ball Bearing Drawer Slide

  Rating 4.6 | 213 Reviews in the past 24 months | Our Item Number VLS2-S16-SC

Cabinetparts VLS 2.0 Side Mount Drawer Slides deliver smooth full extension, soft-close performance, and a sturdy 90 lb load capacity. For face frame cabinets, rear mounting brackets (sold separately) are required. In frameless cabinets, slides mount directly to the interior sides. The drawer width should be 1" to 1-1/16" less than the opening width for optimal Soft Close functionality

$
11.24 Pair
$10.90/ea for 10
$16.06
SAVE 30%
Ends Jun 12

Compatible Drawer Length:

Need Help? Contact Us Now
Product Info Travel (mm): 401mm, Length: 16 Inch, Closing Type: Soft Closing, Load Rating: 90 lbs, Extension: Full, See more product details
Qty:       Pair
  or
PRO Packs ™
Save more! Buy a Pro Pack.



Large Project?

Orders $2500+ Qualify for Special Discounts.

Build your item list and get a Quick Quote

view bid cart
Compare this item

All the product info you could ask for...

  • Size Info

  • Actual Slide Length (Inches) : 15-3/4 Inch
  • Actual Slide Length (mm) : 400mm
  • Required Internal Cabinet Depth (mm) : 404mm
  • Required Internal Cabinet Depth (Inches) : 15-15/16 Inch
  • Travel (mm) : 401mm
  • Travel (Inches) : 15-13/16 Inch
  • Length : 16 Inch
  • Required Side Clearance (R+L) : 1-1/16 Inch

  • Manufacturer Info

  • Manufacturer Part # : VLS2-S16-SC

  • Other Important Info

  • Series : Cabinetparts VLS 2.0 Sidemount Drawer Slide
  • Product Type : Drawer Slide: Full Extension
  • Closing Type : Soft Closing
  • Load Rating : 90 lbs
  • Extension : Full
  • Material : Steel
  • Product Finish : Zinc Plated
  • Includes : (1) pair of drawer slides, mounting screws

  • Manufacturer Resources

Back to Top
back to top

Our customers say CabinetParts products...

  4.6 out of 5
based on 213 ratings

"These reviews are from our customers who have purchased CabinetParts products."
  • 5 of 5 Replaced old slides easily April 29th, 2026
    by Peter from Steamboat Springs, CO

    Replacement for a 3/4 extension without soft close. Went in using identical existing screw holes and made my dresser 100x better. Soft close works as expected and they are very quiet. Much quieter than the stock ball bearing slides I replaced.

    Was this review helpful? yes no

  • 4 of 5 That's good stuff April 16th, 2026
    by Joseph from Spring, TX

    Project is on hold

    Was this review helpful? yes no

  • 5 of 5 Cabinet builder . October 8th, 2025
    by Edward from Smithfield, UT

    I have used Accuride and these side mounted on a multitude of cabinets and they have always worked well.

    Was this review helpful? yes no

  • 5 of 5 Drawer Slides October 6th, 2025
    by William from Port Richey, FL

    Work really well. Installation not to hard But.. Price is very good..

    Was this review helpful? yes no

  • 5 of 5 Best slides July 10th, 2025
    by Corey from Murray, UT

    I found this website from one of the wood working guys I follow on you tube. The prices are exceptional even with shipping and the drawer slides I bought come way better than the ones at box stores. They slide smooth the first time you put them on. Box store slides have a thick almost clear grease all over them that is sticky. I usually have to wipe them down and lubricate with a good oil then work them a bit to get a good slide to function as proper soft close. These ones I bought here are perfect. Thank you.

    Was this review helpful? yes no

See More Reviews

Reviews about us...

  • 5 of 5 | June 1st, 2026

    They went above and beyond to replace items damaged in shipping.

  • 5 of 5 | June 1st, 2026

    Everything came as ordered. No issues with the quality of the finish or the mechanics of the hardware.

  • 5 of 5 | June 1st, 2026

    The hinges I purchases worked great just one or two minor adjustment to my doors and insatallayionnwas simple.

  • 4 of 5 | May 31st, 2026

    Initially there was a problem with the quantity of items delivered, but they promptly responded and I received my full order.

  • 5 of 5 | May 31st, 2026

    Ordered surface mounted hinges for a bathroom renovation project. CabinetParts has a wide selection, price was fair and shipment arrived in just a couple days. Well satisfied with the results.

See More Reviews
