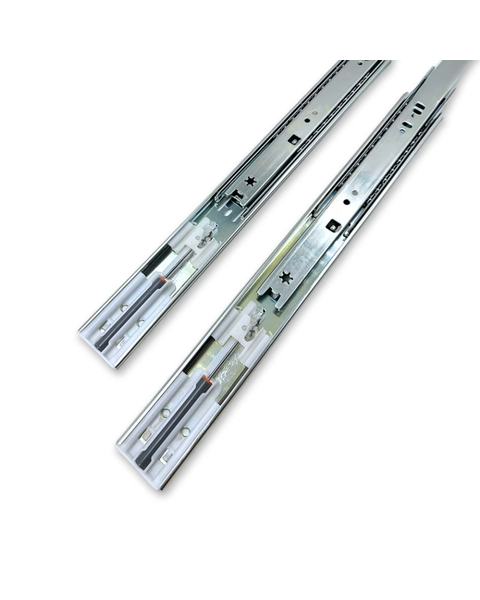

VLS2.0 Soft Close 22 Inch Length Side Mounted Full Extension Ball Bearing Drawer Slide
Cabinetparts VLS 2.0 Side Mount Drawer Slides deliver smooth full extension, soft-close performance, and a sturdy 90 lb load capacity. For face frame cabinets, rear mounting brackets (sold separately) are required. In frameless cabinets, slides mount directly to the interior sides. The drawer width should be 1" to 1-1/16" less than the opening width for optimal Soft Close functionality
Ends Jun 12
Compatible Drawer Length:
Save more! Buy a Pro Pack.
Large Project?
Orders $2500+ Qualify for Special Discounts.
Build your item list and get a Quick Quote
view bid cartAll the product info you could ask for...
-
Size Info
- Actual Slide Length (Inches) : 21-5/8 Inch
- Actual Slide Length (mm) : 550mm
- Required Internal Cabinet Depth (mm) : 554mm
- Required Internal Cabinet Depth (Inches) : 21-13/16 Inch
- Travel (mm) : 551mm
- Travel (Inches) : 21-11/16 Inch
- Length : 22 Inch
- Required Side Clearance (R+L) : 1-1/16 Inch
-
Manufacturer Info
- Manufacturer Part # : VLS2-S22-SC
-
Other Important Info
- Series : VLS 2.0 Sidemount Drawer Slide
- Product Type : Drawer Slide: Full Extension
- Closing Type : Soft Closing
- Load Rating : 90 lbs
- Extension : Full
- Material : Steel
- Product Finish : Zinc Plated
- Includes : (1) pair of drawer slides, mounting screws
Manufacturer Resources
-
Helpful Videos
-
Disconnect VLS 2.0 Side Mount Drawer Slides -
How to Install Locking Devices on VLS 2.0 -
How to Assemble a Dovetail Drawer Box: Step-by-
Required for Face Frame Cabinet Installation
Other - VLS Full Extension Slides
