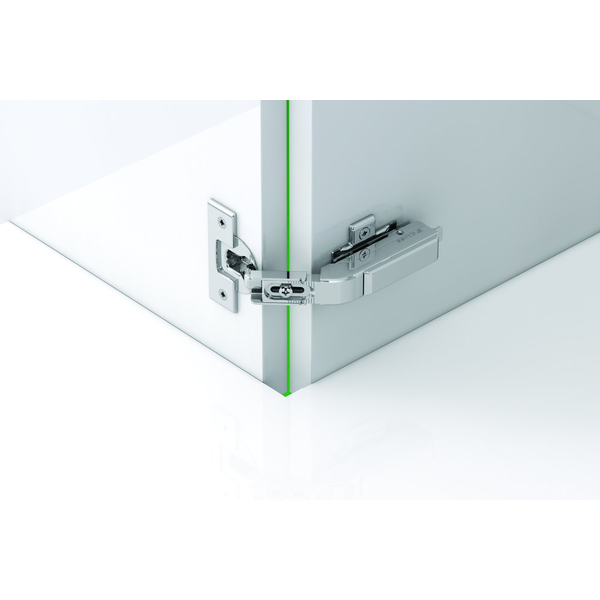

Grass Tiomos Pie-Cut Corner Self-Close Cabinet Hinge for Bi-Fold Doors, Press-In Dowel Mounting, 42mm Hinge Screw Spacing

  Rating 4.6 | 1,027 Reviews in the past 24 months | Our Item Number GHA-F045138336228

Experience the precision of Grass Tiomos Hinges engineered for frameless cabinets with tool-free installation and a choice of press-fit or screw-on mounting. Offered in 110 Degrees, 120 Degrees, and 155 Degrees opening angles, these hinges support overlays up to 24 mm and use a standard 35 mm cup diameter. Available in models for 42 mm or 45 mm screw hole spacing, Tiomos comes in self-close (spring), soft-close (damper), and free-swinging versionsâ??perfect for touch-to-open systems. Premium performance meets modern flexibility.

$
11.49 Each
$11.15/ea for 50
$16.41
SAVE 30%
Ends Aug 05

Hinge Screw Spacing:

Product Info Hinge Screw Spacing: 42 mm, Collection: Tiomos, Degree of Opening: Folding, Closing Type: Self-close, Mounting Type: Dowelled, See more product details
Helpful Tip TIP: HINGES ARE COMPLICATED: Use our FREE TOOL to buy the correct hinge and mounting plate. Start Now
Qty:       Each
  or
PRO Packs ™
Save more! Buy a Pro Pack.



Large Project?

Orders $2500+ Qualify for Special Discounts.

Build your item list and get a Quick Quote

view bid cart
Compare this item

All the product info you could ask for...

  • Size Info

  • Hinge Screw Spacing : 42 mm
  • Cup Drilling Depth : 12.6 mm
  • Cup Drilling Diameter : 35 mm

  • Manufacturer Info

  • Manufacturer : Grass
  • Manufacturer Part # : F045138336228

  • Other Important Info

  • Product Type : Long Arm Hinge
  • Collection : Tiomos
  • Degree of Opening : Folding
  • Closing Type : Self-close
  • Area of Application : For CNR Doors
  • Mounting Type : Dowelled
  • Installation Note : Warning: Tiamos series Baseplate required for use
  • Overlay : Pie-cut folding doors
  • Door Processing For Assembly : With Cup Drilling
  • Cup Fixing : For Push Fitting
  • Hinge Screw Spacing : 42/11
  • Cup Material : Zinc alloy
  • Hinge Arm Material : Zinc alloy
  • For Use With : Tiomos 155 hinge
  • Installation Note : Includes dowels for 3-hole pre-bore; remove for screw-on. #6 × 5/8" flat-head screws required. Tiamos series Baseplate required for use

  • Manufacturer Resources
