Loox Adjustable Delay Time Motion Detector, Recess or Surface Mounted with Separate Housing Available, Requires Loox Snap-in Lead and 6-Way Distributor with Switch
Rating 4.6 | 7 Reviews | Our Item Number HAF-833.89.333
Loox sensors and switches are key components of the Häfele lighting system, offering convenient, touch-free or automated control of LED fixtures. Whether using motion detectors, door sensors, or dimmer switches, each connects via a modular snap-in lead (available in various lengths) to the switch input on a Loox 6-way distributor. This distributor then connects directly to a Loox LED driver, creating a streamlined, plug-and-play setup. As part of Häfele’s system-based approach, this modular design ensures flexible installation, compatibility, and easy customization across a wide range of cabinet and furniture lighting applications.
$
28.80 Each
$36.00
SAVE 20%
Ends Aug 05
Ends Aug 05
Need Help? Contact Us Now
Product Info Drill Hole: 15/32 Inch, Voltage: 12/24V, Series: Loox, Delay Time: 30 to 180s, See more product details
Large Project?
Orders $2500+ Qualify for Special Discounts.
Build your item list and get a Quick Quote
view bid cartAll the product info you could ask for...
-
Size Info
- Installation Type : Colored cover sleeve suitable for drill hole in furniture and housing. Sensor lens protrudes approx. 5 mm.
- Drill Hole : 15/32 Inch
- Sensor Range : 0 to 118-1/8 Inch
-
Manufacturer Info
- Manufacturer : Hafele
- Manufacturer Part # : 833.89.333
- Manufacturer Finish : White/Gray/Black
-
Other Important Info
- Product Type : Motion Detector
- Product Finish : White/Gray/Black
- Version : Delay Time Adjustable
- Voltage : 12/24V
- Installation : For mounting in drilled hole, or for plug fitting into housing
- Series : Loox

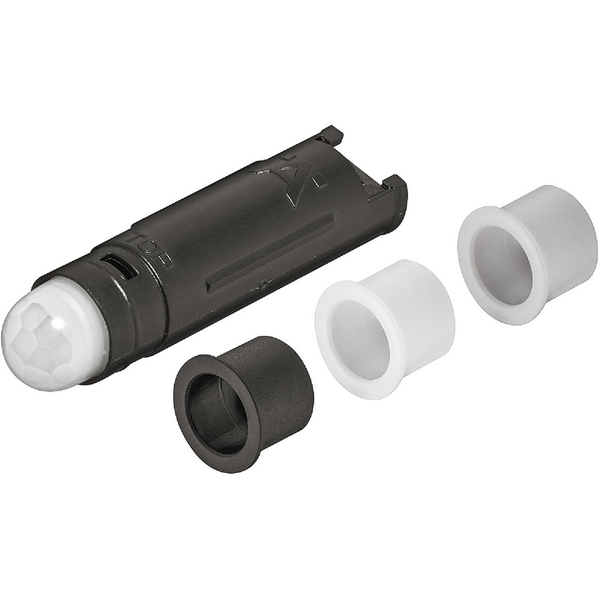

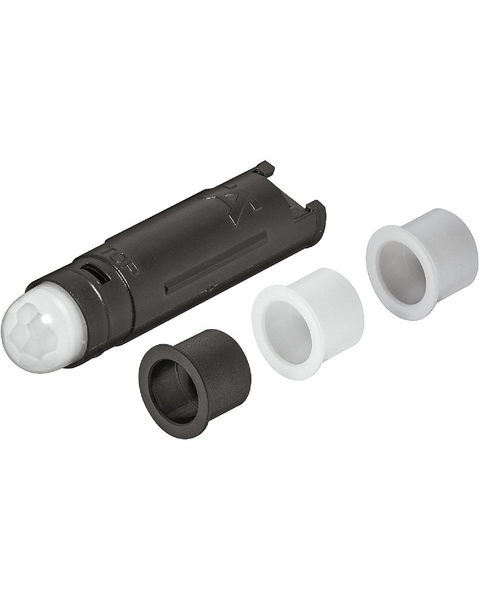

- Includes : 1 Adjustable motion sensor switch, 3 cover sleeves (white, gray, black)
- Delay Time : 30 to 180s
- Key Features : Use DIP switch to toggle from 30, 60, and 180 seconds delay time
Manufacturer Resources
