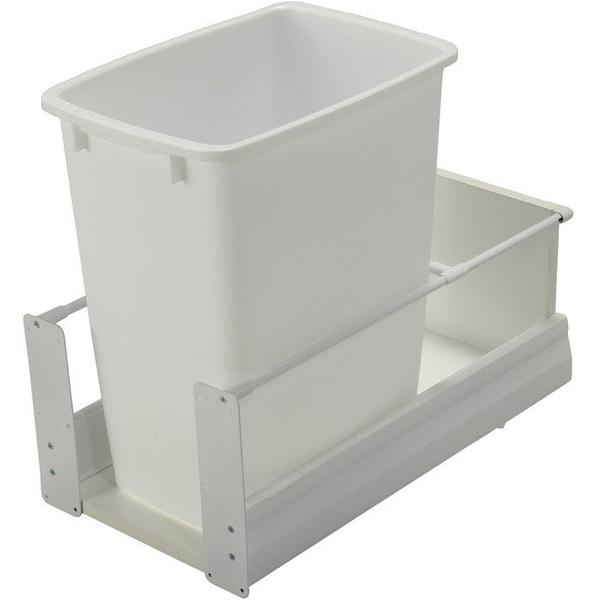

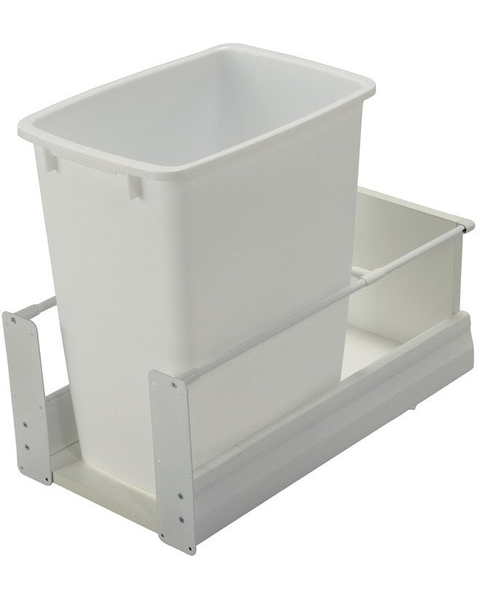

Hafele Matrix 52 Quart Soft-Close Single Waste Bin Pull-Out for Minimum 12" Face Frame/12-3/4" Frameless Interior Width x 24" Height x 19-11/16" Depth, White
Rating 5.0 | 1 Reviews | Our Item Number HAF-503.15.723
Frame: white, bottom and back: white melamine, bin: white, 52 qt
$
256
$320.00
SAVE 20%
Ends Sep 01
Ends Sep 01
$15 Off Ground Shipping for Organizers - Orders $99+
Use Code ORGSHIPDISCOUNT2608 Expires 8/31/2026
Use Code ORGSHIPDISCOUNT2608 Expires 8/31/2026
Capacity:
Finish: White Frame / White Bin
Need Help? Contact Us Now
Product Info Capacity: 52 Quart, See more product details
Large Project?
Orders $2500+ Qualify for Special Discounts.
Build your item list and get a Quick Quote
view bid cartAll the product info you could ask for...
-
Size Info
- Minimum Cabinet Opening Width : Face Frame - 12", Frameless - 12-3/4", With door brackets reversed for Full Overlay 5 piece doors - 13-1/2"
- Mounting : Quick mounting, bottom bracket rests against back of face frame (3/4 Inch from front edge)
- Minimum Interior Depth : 19-11/16"
- Minimum Interior Height : 24"
-
Manufacturer Info
- Manufacturer : Hafele
- Manufacturer Part # : 503.15.723
- Manufacturer Finish : White Frame / White Bin
-
Other Important Info
- Product Type : Single Pullout Waste Container
- Application : Bottom mount unit designed for Face Frame or Frameless cabinets
- Material : Frame: Steel, Bottom & back: Particle board, Bin: Plastic
- Key Features : Double wall steel frame system provides heavy duty structure and a stylish design
Unit comes pre-assembled with bins included
Melamine Bottom and Back with Edgebanding
Soft & Silent - Slide Type : Full extension progressive action runners
- Height adjustment : 6 way door front adjustment
- Capacity : 52 Quart
- Load bearing capacity : (110 lbs) 50 kg
- Note : Add your door thickness for inset applications
- Includes : Mounting screws, Mounting instructions
- Mounting Type / Closing Type : Soft-Close
Manufacturer Resources
