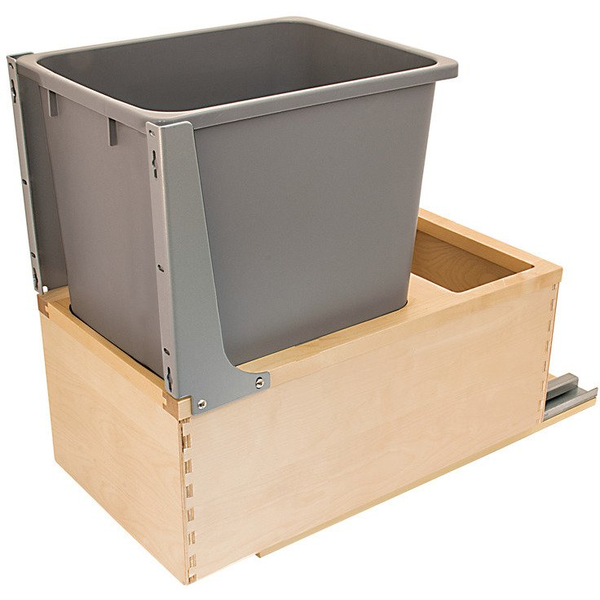

Final Sale, 52 Quart Wood Frame Bottom Mount Single Waste Bin Pull-Out with Grass Elite Undermount Slides -
Product Discontinuation AlertThis item has left our catalog. It's either upgraded to a newer model, didn't meet our high customer satisfaction standards, or the manufacturer said goodbye. But don't worry, CabinetParts is always here with top-notch alternatives.All the product info you could ask for...
-
Size Info
- Application : Designed to fit an opening: Frace Frame: 12 Inch wide × 19-3/4 Inch high or Frameless: 13 Inch wide x 19-3/4 Inch high
- Key Features : For 15 & 18 Inch (outside cabinet width) framed cabinets with a door/drawer.
Can also be used with Frameless cabinets
Door attachment screws are not provided
Dovetail construction with Grass Elite undermount slides which provide a smooth and reliable operation - Minimum Cabinet Opening Depth : 22-3/8 Inch
- For cabinet width : 11-1/8 - 14-1/16 Inch
- Depth : 22-1/2 Inch
- Width : 11-1/2 Inch
- Height : 24 Inch
- Height adjustment : 19-5/8 Inch
-
Manufacturer Info
- Manufacturer : Hafele
- Manufacturer Part # : 503.88.853
-
Other Important Info
- Product Type : Single Pullout Waste Container
- Material : Prefinished Baltic birch plywood with solid birch top, Bin: Plastic
- Closing effect : Soft close
- Capacity : 52 Quart
- Load bearing capacity : 80 lbs
- Installation : Installs easily to the floor of the cabinet with provided screws
- Note : Adjustable door brackets can be used with a 5 piece door or you can secure the door directly to the front of the pullout.
- Includes : Mounting instructions, Mounting screws for pull-out (door mounting screws are not provided), Gray plastic bin, adjustable door mounting brackets
- Shipping and Return Info : Final Sale. No Returns.
