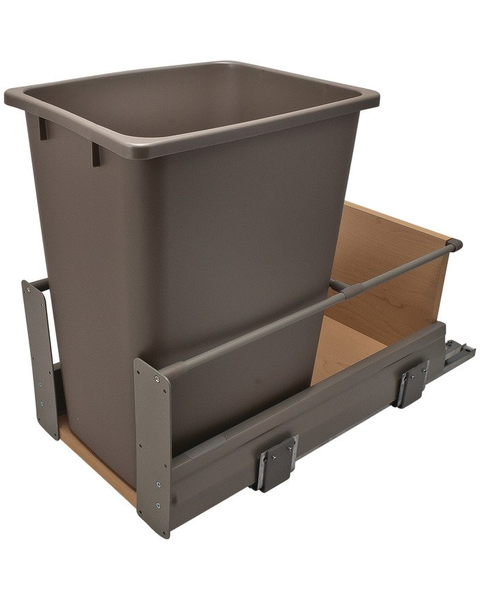

52 Quart MX Single Waste Bin Pull-Out, Frame: Champagne, Bottom and back: Maple, Bin: Champagne
Product Discontinuation AlertThis item has left our catalog. It's either upgraded to a newer model, didn't meet our high customer satisfaction standards, or the manufacturer said goodbye. But don't worry, CabinetParts is always here with top-notch alternatives.All the product info you could ask for...
-
Size Info
- Minimum Cabinet Opening Width : Face Frame - 14-3/4 Inch, Frameless - 15-1/2 Inch, With door brackets reversed for Full Overlay 5 piece doors - 16-1/4 Inch
- Mounting : Quick mounting, bottom bracket rests against back of face frame (3/4 Inch from front edge)
-
Manufacturer Info
- Manufacturer : Hafele
- Manufacturer Part # : 503.15.823
-
Other Important Info
- Product Type : Single Pullout Waste Container
- Application : Bottom mount unit designed for Face Frame or Frameless cabinets
- Material : Frame: Steel, Bottom & back: Particle board, Bin: Plastic
- Finish : Frame: Champagne, Bottom and back: Maple, Bin: Champagne
- Key Features : Double wall steel frame system provides heavy duty structure and a stylish design
Unit comes pre-assembled with bins included
Melamine Bottom and Back with Edgebanding
Soft & Silent - Slide Type : Full extension progressive action runners
- Height adjustment : 6 way door front adjustment
- Capacity : 52 Quart
- Load bearing capacity : (110 lbs) 50 kg
- Note : Add your door thickness for inset applications
- Includes : Mounting screws, Mounting instructions
