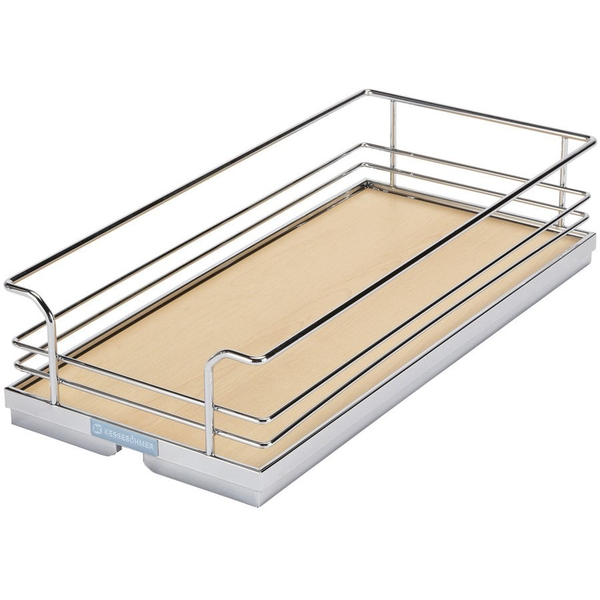

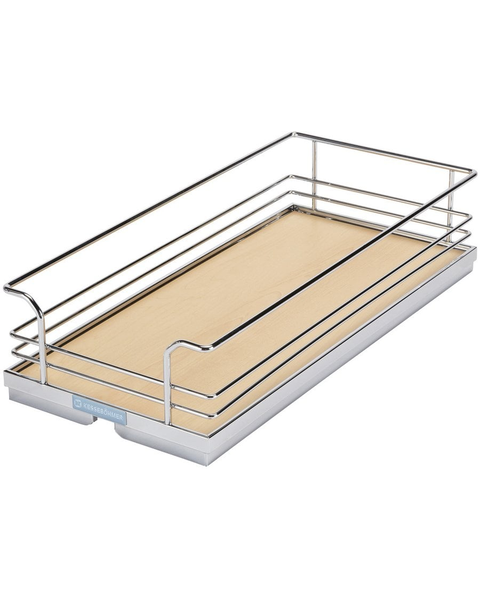

Final Sale, 17-1/16 Inch Width Storage Tray for Internal Drawer Pull-Out, Shelf: Maple, Surround: Chrome
Product Discontinuation AlertThis item has left our catalog. It's either upgraded to a newer model, didn't meet our high customer satisfaction standards, or the manufacturer said goodbye. But don't worry, CabinetParts is always here with top-notch alternatives.All the product info you could ask for...
-
Size Info
- Key Features : Consider door and hinge protrusion for clearance
Can be blocked out with --Quick Tray" system for face frame applications
Opening should be 1/2 Inch wider than pull-out
Non-slip - Depth : 20-5/8 Inch
- Width : 17-1/16 Inch
- Height : 4-5/16 Inch
- Installation : Mount with designated 21 Inch undermount slides
-
Manufacturer Info
- Manufacturer : Hafele
- Manufacturer Part # : 547.12.103
- Kessebohmer Brand # : 2500690005
-
Other Important Info
- Includes : (1) Storage Tray
- Product Type : Base Cabinet Tray
- Application : For overlay frameless, inset framed and overlay framed doors
- Material : Shelf: Melamine, Surround: Steel
- Finish : Shelf: Maple, Surround: Chrome
- Mounting : Internal drawer pull-outs should be positioned above or below door hinges
- Closing effect : Soft & silent
- Shipping and Return Info : Final Sale. No Returns.
