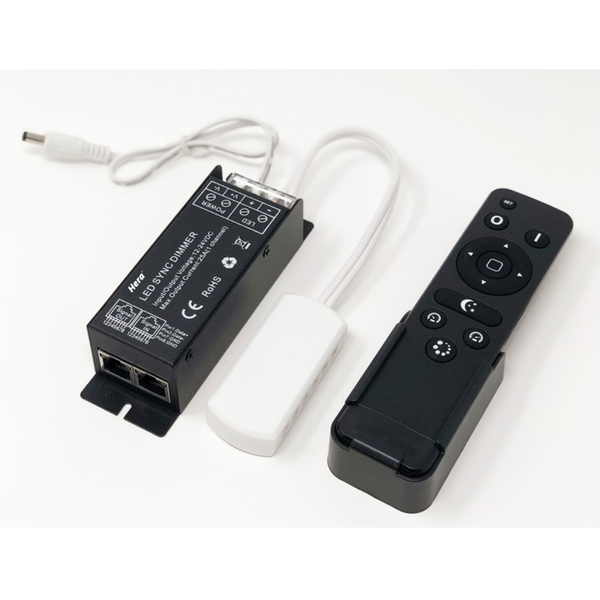

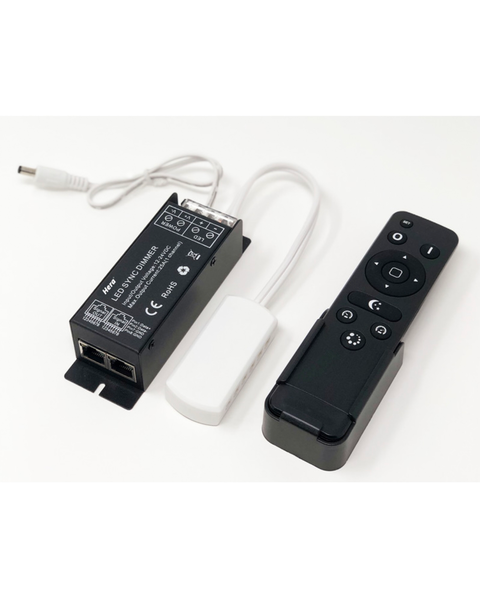

Hera 24V Wireless LED Lighting Dimmer System including Remote Control and Receiver, Programmable, 50 Foot Range

The Hera RCPSDIM/V2 24V wireless LED receiver and dimmer is designed to be added to an existing Hera 24-volt lighting system and is installed on the low-voltage side of the setup. Begin by turning off the power to the lighting system. Locate the existing Hera 24-volt LED driver and identify the 24-volt DC output wires. These wires connect to the INPUT terminals on the RCPSDIM/V2, making sure the positive wire connects to positive and the negative wire connects to negative. Next, connect the LED light leads to the OUTPUT terminals on the RCPSDIM/V2, again matching positive to positive and negative to negative. Once all wiring connections are secure, restore power to the driver. The receiver must then be paired to a compatible Hera wireless remote or wall control. To do this, press and hold the pairing button on the RCPSDIM/V2 until the indicator light activates, then press the on or pairing button on the control. After pairing, the receiver will allow wireless on off and dimming control of the connected LED lights. This unit does not replace the power supply and does not connect to household line voltage. It simply adds wireless dimming control between the existing driver and the lights.
