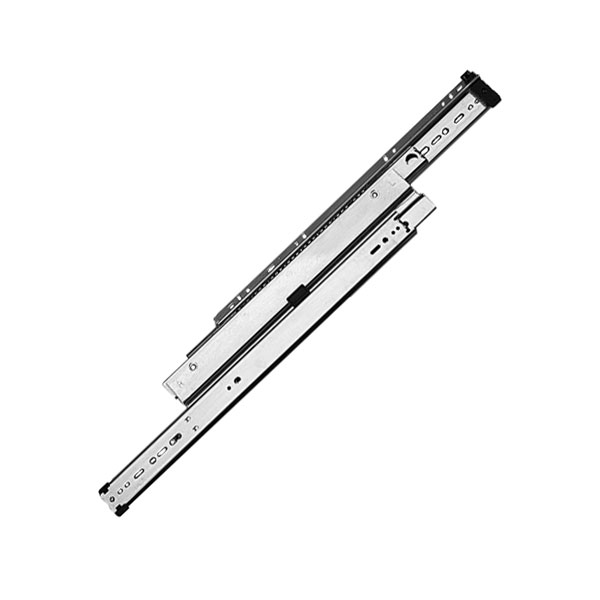

KV 8505 16 inch Full Extension +1.5 inch 150Lb Zinc
Designed for lateral file applications, the 8505 features full extension + 1-1/2" over-travel, rail mount/disconnect and a weight capacity of 150lbs.
Ends Aug 05
Length:
Save more! Buy a Pro Pack.
Large Project?
Orders $2500+ Qualify for Special Discounts.
Build your item list and get a Quick Quote
view bid cartAll the product info you could ask for...
-
Size Info
- Length : 16 inch
- Travel : 17.5"
- Extension / Motion Feature : Full +1.5 inch over travel / Standard
-
Manufacturer Info
- Manufacturer Series Name : 8505
- Manufacturer Part # : 8505P 16
- Manufacturer : Knape and Vogt
-
Other Important Info
- Closing Type : Manual
- Extension : Overtravel
- Key Features : Quick-Disconnect Drawer Members
Non-Handed
Hold-In Detent
Positive in/Out Stops - Load Rating : 150 lbs
- Product Finish : Anochrome
- Product Type : Drawer Slide: Full Extension
- Includes : (1) pair of drawer slides
- Slide Configuration : Handed
- Quick Release Rail : Unhanded/Reversible
Manufacturer Resources
-
Helpful Videos
-
How to Install Side Mount Drawer Slides
Accessories
Other - KV 8505 Full Extension Over-Travel Slide
Our customers say Knape and Vogt products...
based on 60 ratings
- 5 of 5 direct replacement March 18th, 2020
by Roger from Cordova, TNoriginal drawer glides were severely damaged when the drawer locking mechanism would lock and the key was not working (or missing). This replacement went in easily as a solution and saved the whole cabinet.
- 0 of 1 people found the following review helpful
4 of 5 fixup June 12th, 2019
by John from Staten Island, NYcabinet parts has what you need great service speedy delivery reasonable prices
- 5 of 5 Fit and worked perfectly August 1st, 2018
by John from Wethersfield, CTThe part was an exact match for a very old but fancy lateral file. The drawer now works better than ever even though it is fully loaded with files and catalogs.
- 5 of 5 Order Damage in Shipment July 13th, 2018
by William from Texarkana, TXHave nothing but good things to say about my purchase and service of this company. When i received my package it was damage in shipment and my order was short 4 sets of slideouts. I contacted company and they mailed my other 4 sets right away and i received them in 4 days. Great customer service. Will buy from them again.
- 5 of 5 Great product! February 26th, 2016
by Ron from Morgan Hill, CAI have been very satisfied with the 16" slider rails. Ordering them online was very easy and intuitive. I received the product in a few days, and had them installed within 30 minutes. The shopping experience on Cabinetparts.com was by far the best experience I have ever encountered on a website. Thanks! - Ron -
