Drawer Slides (glides) Side Mount Drawer Slides KV 8505 Full Extension Over-Travel Slide
Loading from Primary Photo

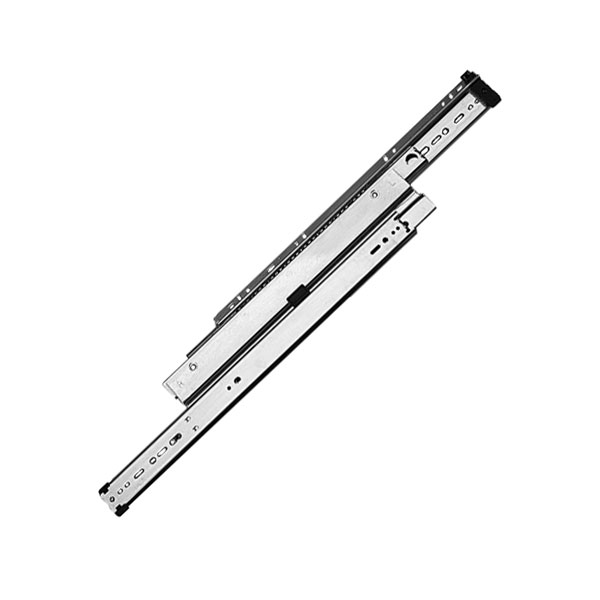

KV 8505 20 inch Full Extension +1.5 inch 150Lb Zinc

  Rating 4.5 | 60 Reviews in the past 24 months | Our Item Number KV-850520

Designed for lateral file applications, the 8505 features full extension + 1-1/2" over-travel, rail mount/disconnect and a weight capacity of 150lbs.

$
48.19 Pair
$47.47/ea for 5 $46.99/ea for 10 $46.26/ea for 20
$80.31
SAVE 40%
Ends Sep 19

Length:

Need Help? Contact Us Now
Product Info Length: 20 inch, Travel: 21.5", Closing Type: Manual, Extension: Overtravel, Load Rating: 150 lbs, See more product details
Order Qty:       Pair
  or
PRO Packs ™
Save more! Buy a Pro Pack.





Large Project?

Orders $2500+ Qualify for Special Discounts.

Build your item list and get a Quick Quote

view bid cart
Compare this item

All the product info you could ask for...

  • Size Info

  • Length : 20 inch
  • Extension / Motion Feature : Full +1.5 inch over travel / Standard
  • Travel : 21.5"

  • Manufacturer Info

  • Manufacturer Series Name : 8505
  • Manufacturer Part # : 8505P 20
  • Manufacturer : Knape and Vogt

  • Other Important Info

  • Closing Type : Manual
  • Extension : Overtravel
  • Key Features : Quick-Disconnect Drawer Members
    Hold-In Detent
    Positive in/Out Stops
  • Load Rating : 150 lbs
  • Product Finish : Anochrome
  • Product Type : Drawer Slide: Full Extension
  • Includes : (1) pair of drawer slides
  • Slide Configuration : Handed
  • Quick Release Rail : Unhanded/Reversible

  • Manufacturer Resources

Back to Top
back to top

Our customers say Knape and Vogt products...

  4.5 out of 5
based on 60 ratings

"These reviews are from our customers who have purchased Knape and Vogt products."
  • 5 of 5 Cabinet slides October 3rd, 2025
    by Alfred from Livingston, NJ

    Great pricing an Quality

    Was this review helpful? yes no

  • 5 of 5 Best place to get cabinet parts July 25th, 2019
    by Loren from La Grange, TX

    I have been buying from Cabinet Parts for about 10 years. I bought all the hardware, drawer slides and door hinges for my kitchen. I have also bought parts for my bathroom cabinets. This time I bought a heavy duty drawer slide for my computer printer. I can always find what I need, including all the technical data if I can't find the paper work. Deliveries come quickly right from the manufacturer. I buy here and not at the big box stores.

    Was this review helpful? yes no

  • 5 of 5 got exactly what i needed March 15th, 2017
    by Serge from Mountainside, NJ

    (no comment given)

    Was this review helpful? yes no

  • 5 of 5 Great Experience July 3rd, 2026
    by John from Burleson, TX

    I needed to replace the slides on my rubbish draw. Cabinet Parts had exactly what I needed. The website worked well and the order was shipped promptly. Inadvertently one of the slides broke during installation. I contacted customer service, sent them a photo of the defective part. They promptly shipped me a replacement slide. I will absolutely use them the next time.

    This review is about a different size/color of this item. (KV-850522)

    Was this review helpful? yes no

  • 2 of 4 people found the following review helpful
    3 of 5 Average, Ordinary March 5th, 2014
    by Randy from Woodward, OK

    Not as sturdy as had hoped

    This review is about a different size/color of this item. (KV-850512)

    Was this review helpful? yes no

See More Reviews
