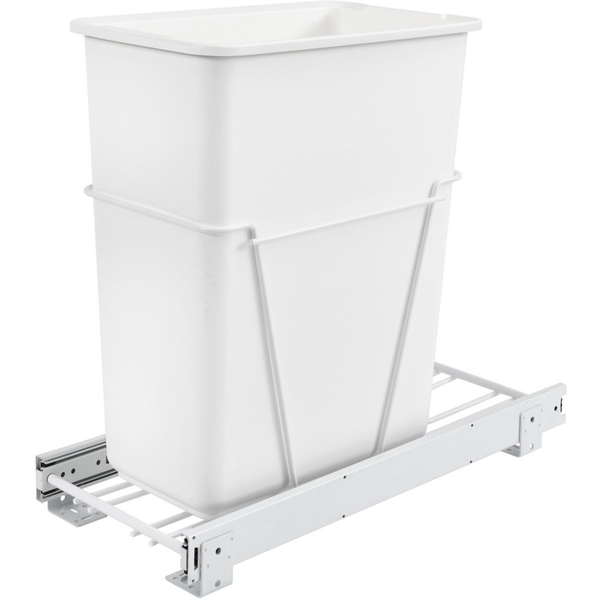

30 Quart Bottom Mount Single Trash Pull-Out, Min. Cabinet Opening: 9-5/8" Wide, White
Product Discontinuation AlertThis item has left our catalog. It's either upgraded to a newer model, didn't meet our high customer satisfaction standards, or the manufacturer said goodbye. But don't worry, CabinetParts is always here with top-notch alternatives.All the product info you could ask for...
-
Size Info
- Product Depth : 22"
- Full Product Dimensions (Millimeters) : 241.3 mm W x 558.8 mm D x 488.95 mm H
- Note : Frameless min. cabinet opening is equal to physical Product Width
- Minimum Opening for a Face Frame Cabinet : 9-5/8" Width x 22-1/8" Depth x 19-3/8" Height
- Minimum Opening for a Frameless Cabinet : 9-5/8" Width x 22-1/8" Depth x 19-3/8" Height
- Minimum Opening for a Frameless Inset Cabinet : Add 3/4 inch to depth of the "Minimum Opening for a Frameless Cabinet"
- Min. Face Frame Cabinet Height : 19-3/8"
- Product Width : 9-1/2"
- Product Height : 19-1/4"
- Min. Face Frame Cabinet Width : 9-5/8"
- Min. Face Frame Cabinet Depth : 22-1/8"
-
Manufacturer Info
- Manufacturer Part # : RV-9PB
- Manufacturer : Rev-A-Shelf
-
Other Important Info
- Mounting Type : Bottom Mount
- Bin Color/Finish : White
- Product Type : Single Pullout Waste Container
- Includes : (1) container frame, 3/4 extension slides & (1) 30 qt waste bin
- Waste Container Capacity : 30 Quart
- Weight Capacity : 75 lbs
- Category Groupings : RV 30 Qrt White
- Sub-Class : Base Cabinet
- Product Series : W4 - RV-White
- Ship Type : Small Parcel
- Keywords : Kitchen, Cabinet Organization, Trash, Waste Containers,
- All Features : Included: (1) White 30 quart container with White frame and mounting hardware
Slide Type: 75lb 3/4 Extension Ball-Bearing Slides
11" or larger opening
Door Mount Brackets: Option that is sold seperately (RV DM KIT)
Construction: Heavy gauge painted metal wire construction
Simple (4) screw installation
Limited Lifetime Warranty - Actual Product Width (Inches) : 9.5
- Actual Product Depth (Inches) : 22
- Actual Product Height (Inches) : 19.25
- Full Product Dimensions : 9.5"W x 22"D x 19.25"H
- Actual Product Weight (lbs) : 8.9
- Minimum Cabinet Frameless Opening (Inches) : 9.65
- Actual Product Width (Millimeters) : 241.3
- Actual Product Depth (Millimeters) : 558.8
- Actual Product Height (Millimeters) : 488.95
- Actual Product Weight (Kilograms) : 4.005
- Minimum Cabinet Faceframe Opening (Millimeters) : 279.4
- Lid Included : No
- Minimum Cabinet Frameless Opening (Millimeter) : 245.11
- Door Mount Brackets Included : No
- Primary Color : White
- Product Finish : White
- Country of Origin : China
- Number of Bins : 1
- Material : Steel
- Number of Containers : 1
- Slides : Yes
- Soft Close : No
- Gas Assist : No
- Material Bre : Steel; Plastic
- Slide Extension : 3/4
- Bin Material : Polymer
Manufacturer Resources
About this item
-
This popular waste container series is available in a variety of sizes to accomodate almost any cabinet space. The RV series features a heavy-duty wire frame construction,Euro, 3/4 or full extension ball bearing slides and easy bottom mount installation with just four screws. These durable pullout waste containers carry the standard Rev-A-Shelf LIMITED LIFETIME GUARANTEE.
-
