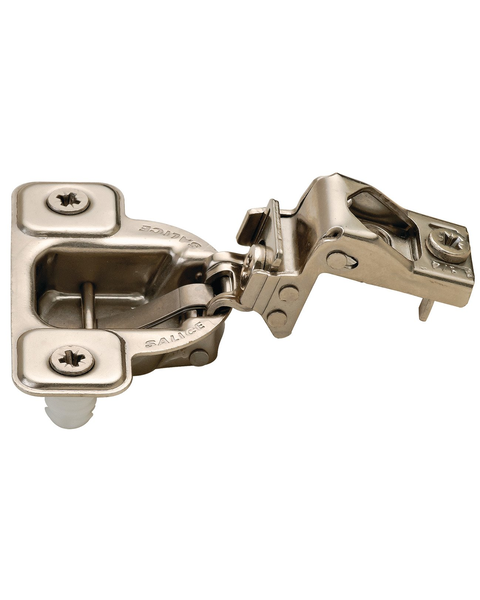

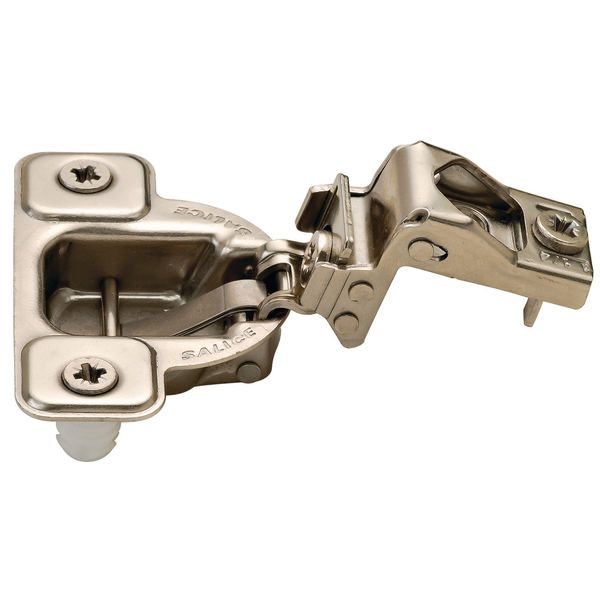

106 Degree 1-1/4 Inch Overlay Face Frame Self Close 2 Cam Dowel Mounting Hinge
Ends Jun 30
Save more! Buy a Pro Pack.
Large Project?
Orders $2500+ Qualify for Special Discounts.
Build your item list and get a Quick Quote
view bid cartAll the product info you could ask for...
-
Size Info
- Adjustment : 2 eccentric cam adjustments
Vertical adjustment +/- 2.5 mm (1/8")
In and out cam adjustment: -0.5 mm (1/64") +2.5 mm (1/8")
Horizontal cam adjustment: +/- 1.5 mm (1/16") - Features : Tab - Fixed at 2.5 mm
-
Manufacturer Info
- Manufacturer : Salice
- Manufacturer Part # : CSR3A99N
-
Other Important Info
- Hinge Screw Spacing : 45/9.5
- Installation : Attaches directly to Face Frame
- Material : Steel
- Opening angle : 106 degree
- Installation Note : Includes dowels for 3-hole pre-bore; remove for screw-on. #6 × 5/8" flat-head screws required.
