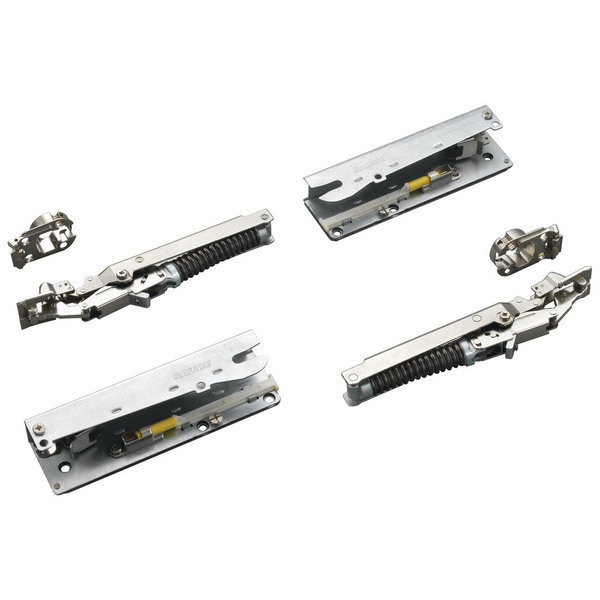

Wind PUSH Open Lift System D (Yellow/Free) Spring Close

Product Discontinuation AlertThis item has left our catalog. It's either upgraded to a newer model, didn't meet our high customer satisfaction standards, or the manufacturer said goodbye. But don't worry, CabinetParts is always here with top-notch alternatives.


All the product info you could ask for...

  • Size Info

  • Key Features : Compact and elegant design
    Adjustable spring strength
    Mounts at the top of a frameless cabinet - block out for face frame
    Optional top mounting bracket
    Angle restrictor clip of 85d is included
    94d opening without restrictor clip
    Inset doors are possible with 6 mm (1/4") shim on the side with 28 mm (1 1/8") max. door thickness 35 mm (1 3/8")
    Drilling of the door - 13 mm (1/2") deep
    Tab (K) distance: 3-7 mm
    Hardware and door easily installed with Salice snap-on technology
    5 Independent adjustments all made with a pozi screwdriver: - Height - Side - Depth - Spring Tension - Soft Close
  • Supplied with :
    • 2 Hinge cups
    • 1 RH and 1 LH lift mechanism
    • 1 RH and LH cabinet base
    • 5 mm x 13 mm Euro screws (#7 x 5/8" wood screws can also be used)
    • Mounting instructions

  • Manufacturer Info

  • Manufacturer : Salice
  • Manufacturer Part # : FRAKFEPDSN9

  • Other Important Info

  • Material : Steel
  • Order reference :

    Order covers separately.

    Top mount brackets and covers available soon.
