Hinges Lid and Flap Stays Lift Systems by Salice
Loading from Primary Photo

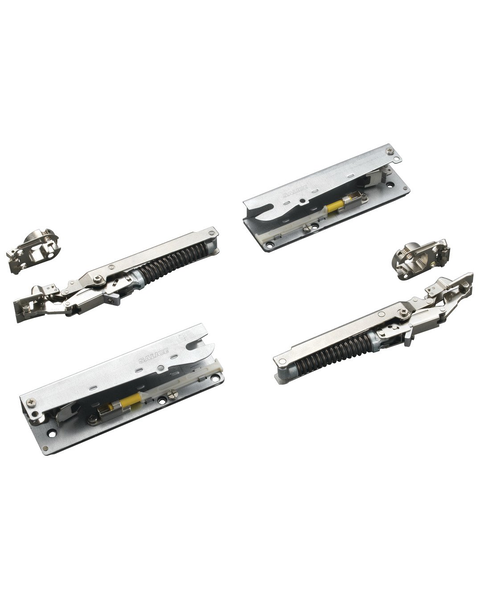

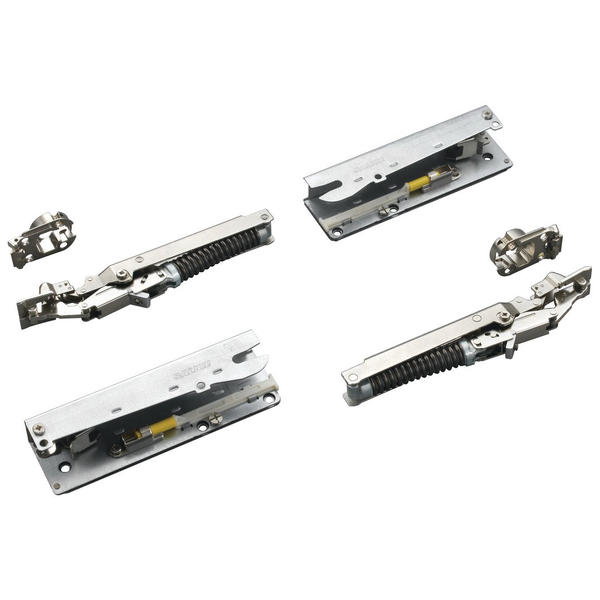

Wind Soft Close Lift Sytstem W (White/Free) Spring Close

  Rating 5.0 | 1 Reviews in the past 24 months | Our Item Number SH-FRAKFEXWSN9

$
75.50
$71.73/ea for 10 $69.46/ea for 20
$107.86
SAVE 30%
Ends Sep 01
Product Info Material: Steel, See more product details
Qty:


Large Project?

Orders $2500+ Qualify for Special Discounts.

Build your item list and get a Quick Quote

view bid cart
Compare this item

All the product info you could ask for...

  • Size Info

  • Key Features : Compact and elegant design
    Adjustable spring strength
    Mounts at the top of a frameless cabinet - block out for face frame
    Optional top mounting bracket
    Angle restrictor clip of 85d is included
    94d opening without restrictor clip
    Inset doors are possible with 6 mm (1/4") shim on the side with 28 mm (1 1/8") max. door thickness 35 mm (1 3/8")
    Drilling of the door - 13 mm (1/2") deep
    Tab (K) distance: 3-7 mm
    Hardware and door easily installed with Salice snap-on technology
    5 Independent adjustments all made with a pozi screwdriver: - Height - Side - Depth - Spring Tension - Soft Close
  • Supplied with :
    • 2 Hinge cups
    • 1 RH and 1 LH lift mechanism
    • 1 RH and LH cabinet base
    • 5 mm x 13 mm Euro screws (#7 x 5/8" wood screws can also be used)
    • Mounting instructions

  • Manufacturer Info

  • Manufacturer : Salice
  • Manufacturer Part # : FRAKFEXWSN9

  • Other Important Info

  • Material : Steel
  • Order reference :

    Order covers separately.

    Top mount brackets and covers available soon.

  • Manufacturer Resources
