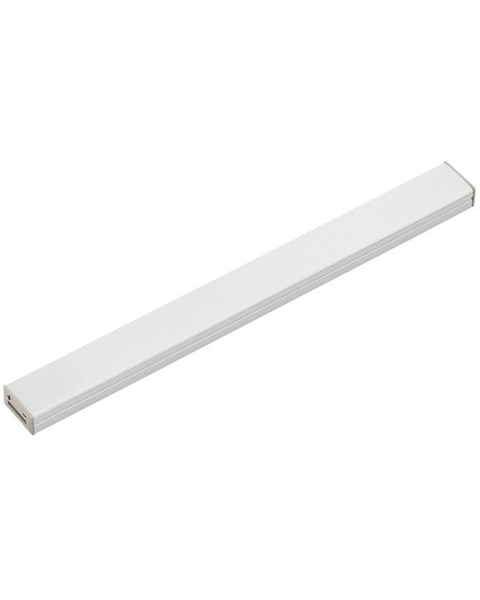

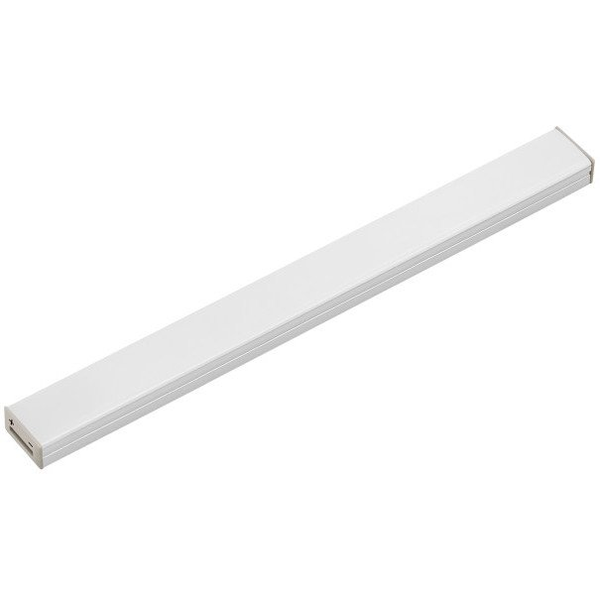

Lighting for Cabinets and Furniture LED Cabinet Lighting LED Stick Lighting for Under Cabinets SimpLED LED Light 4.5W/ft
Loading from Primary Photo

Final Sale, Clearance Sale -8 inch High Output LED Strip 3000K Nickel

Product Discontinuation AlertThis item has left our catalog. It's either upgraded to a newer model, didn't meet our high customer satisfaction standards, or the manufacturer said goodbye. But don't worry, CabinetParts is always here with top-notch alternatives.

See Newer Models

All the product info you could ask for...

  • Size Info

  • Dimmable : Yes; by standard LED wall dimmers
  • Warranty : Commercial Grade 5-Year Warranty
  • Actual Product Width (Inches) : 3/4 Inch
  • Actual Product Height (Inches) : 2/5 Inch
  • Length : 8 Inch
  • Width : 3/4"
  • Height : 3/8"

  • Other Important Info

  • Product Series : TL20 - SimpLED
  • Mounting : Magnets attached to bottom of fixture for mounting
  • Key Features : Optional series of In-Line Controllers Available
    Flat, low-profile, sturdy aluminum fixture
    Three Diffuser options (Clear, Frosted, Milk/Opal) included
  • Linkability : Linkable up to 10' (3 m) continuous run
  • Full Product Dimensions : 0.75"W x 8"D x 0.4"H
  • Actual Product Weight (lbs) : 0.3 lbs
  • Country of Origin : China
  • Material : Aluminum
  • Lumens : 140.7
  • Footcandles : 56.07
  • Efficacy : 47.5
  • Diode Life (Hours) : 50000
  • Bream Spread : 120 Degrees
  • Input Voltage : 12V
  • Safety Listing : UL
  • Mount Type : Surface
  • Lens Finish : Frosted
  • Material Breakdown : Plastic; Silicon; Copper
  • Material Breakdown Percentage : 90;5;5
  • Product Type : Linear
  • Product Finish : Nickel
  • Sold : Includes fixture, 79" starter cord, H shaped connector & mounting clips only. DC Power Supply required for installation.
  • Bulb Type : LED
  • Color Temperature : 3000K Warm White
  • Light Spread : 120 degree
  • Wattage : 3 W
  • Notes : Warning: Maximum continuous run is 10' to prevent power drop
    Maximum 13' per 60 Watt Power Supply
  • Voltage : 12 V
  • Shipping and Return Info : Final Sale. No Returns.
