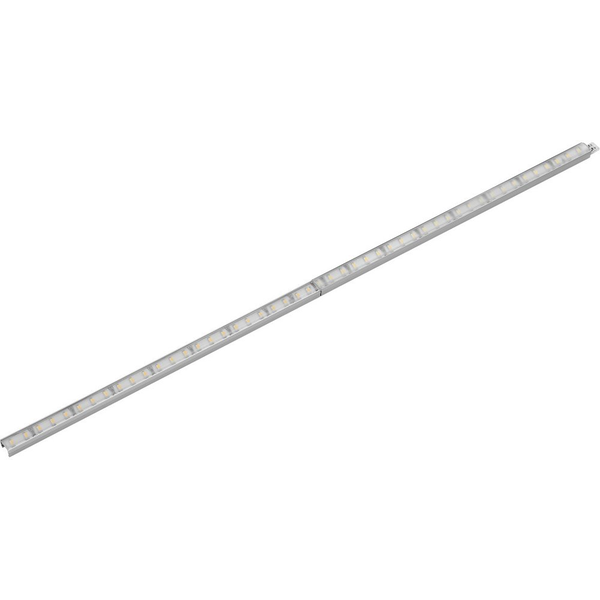

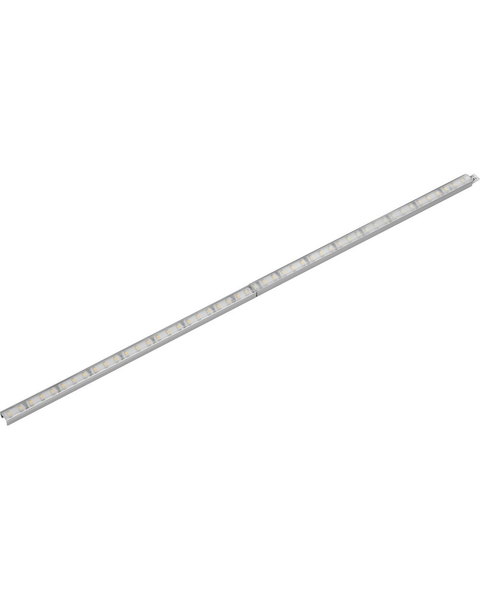

FineLine 22 Inch Length Single LED Stick Light, 12V/4.5W, 3000K Warm White, Nickel
Product Discontinuation AlertThis item has left our catalog. It's either upgraded to a newer model, didn't meet our high customer satisfaction standards, or the manufacturer said goodbye. But don't worry, CabinetParts is always here with top-notch alternatives.See Newer Models
All the product info you could ask for...
-
Size Info
- Length : 22 Inch
- Width : 3/8"
- Height : 5/16"
- Dimmable : Yes; by standard LED wall dimmers
- Actual Product Width (Inches) : 2/5 Inch
- Actual Product Height (Inches) : 3/10 Inch
-
Manufacturer Info
- Manufacturer : Tresco by Rev-A-Shelf
- Manufacturer Part # : L-LED-STK22-WNI-1
-
Other Important Info
- Product Type : Linear
- Product Finish : Nickel
- Sold : Includes fixture, 79" starter cord and mounting clips only. DC Power Supply required for installation
- Bulb Type : LED
- Color Temperature : 3000K Warm White
- Light Spread : 90 degree
- Wattage : 4.5 W
- Notes : Warning: Maximum continuous run is 12' to prevent power drop
Maximum 24' per 60 Watt Power Supply - Voltage : 12 V
- Product Series : TL18 - Fineline
- Key Features : Extremely thin low-profile design
- Linkability : Linkable up to 12' (3.6 m) continuous run
- Full Product Dimensions : 0.4"W x 22"D x 0.3"H
- Actual Product Weight (lbs) : 0.3 lbs
- Country of Origin : China
- Material : Aluminum
- Lumens : 270.04
- Footcandles : 138.05
- Efficacy : 124
- Diode Life (Hours) : 50000
- Bream Spread : 90 Degrees
- Input Voltage : 12V
- Safety Listing : UL
- Mount Type : Surface
- Lens Finish : Frosted
- Material Breakdown : Plastic; Silicon
- Material Breakdown Percentage : 90;10
Manufacturer Resources
-
Helpful Videos
-
How to Install Tresco Lighting -
Plug n Play LED Cabinet Lighting Demo -
Hera Lighting Illuminating Profits With Cabinet
Plug-in 12V Power supplies- Low-Voltage Dimming only
Hardwired Power Supplies - Dimmable with LED Wall Dimmer
Low-Voltage Wired Dimming and/or Switching
Low-voltage Wireless Dimming and/or Switching
Stick Linking Cord
Starter Lead
Other - FineLine LED Strip Light by Tresco Lighting
