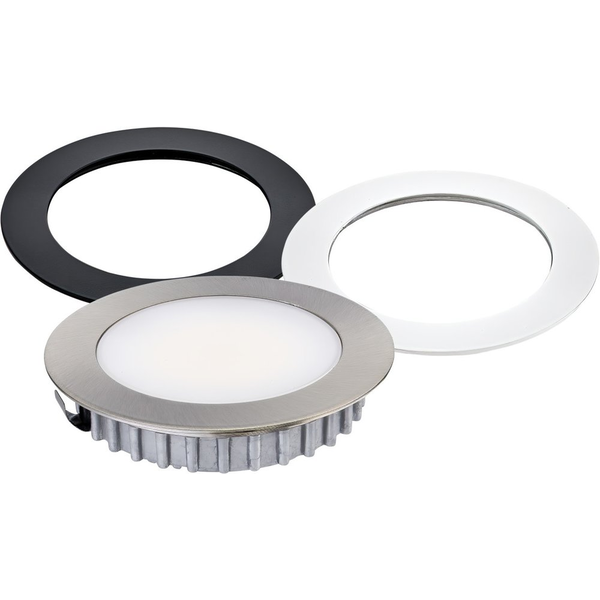

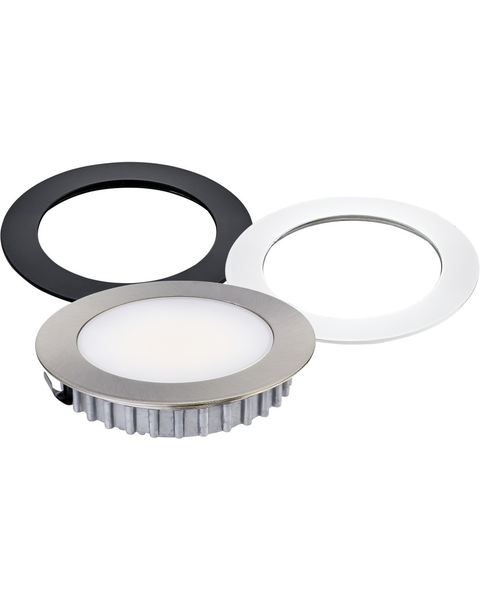

OptiPockit DM 2-1/2" Diameter Dimmable 24V/3W Puck Light including Nickel, White, and Black Recessed Trim, 79" Lead Included, 5000K Cool White, Required Borehole 2-1/4" Diameter x 9/16" Depth

  Rating 4.3 | 3 Reviews in the past 24 months | Our Item Number TRS-L-OPDM-24R50KNBW

The OptiPockit DM (dimmable) can be dimmed with our Freedim controllers or in-line dimmers for plugin and aftermarket dimmers for hardwired power supplies.

$
43.15 Each
$64.73
SAVE 33%
Ends Jul 18

Voltage:

Color Temperature:

Need Help? Contact Us Now
Product Info Product Length: 2-1/2", Product Width: 2-1/2", Product Height: 9/16", Input Cord Length: 79", Dimmable: Yes, See more product details
Qty:       Each


Large Project?

Orders $2500+ Qualify for Special Discounts.

Build your item list and get a Quick Quote

view bid cart
Compare this item

All the product info you could ask for...

  • Size Info

  • Key Features : Efficent puck light with smooth dimming down to 1%. Robust housing design for cool operating temperatures for long life
    Delivers 92lm/W without LED pixelization. Available in 3 CCT (12V) or 4 CCT (24V)
    Available in 24 & 12VDC with new MINI power connector. White cord & connector for 24V applications. Black cord & connector for 12V applications
    Packaged with a round, nickel trim ring attached. Box includes a black and a white round trim ring and adapter to legacy power supplies
    Packaging is biodegradable. Features high visibility labels that call out key product features for easy identification
    5-year warranty. 50,000 hour rated life. 101-degree beam spread
  • Warranty : 5-Year Commercial-Grade Warranty
  • Product Length : 2-1/2"
  • Product Width : 2-1/2"
  • Product Height : 9/16"
  • Input Cord Length : 79"

  • Other Important Info

  • Product Type : Pockit (Puck)
  • Dimmable : Yes
  • Included : (1) Light with attached 79" Starter Cord, (1) MINI Connector and (1) of each Nickel, Black and White Trims are included
  • Safety Listings : UL
  • Country of Origin : China
  • Primary Color : Nickel, White, Black
  • Mounting Block Included : No
  • Output Lead Attached : No
  • Wattage : 3 W
  • Color Temperature : 5000K Cool White
  • Efficacy : 103
  • Lumens : 276
  • Voltage : 24V

  • Manufacturer Resources
