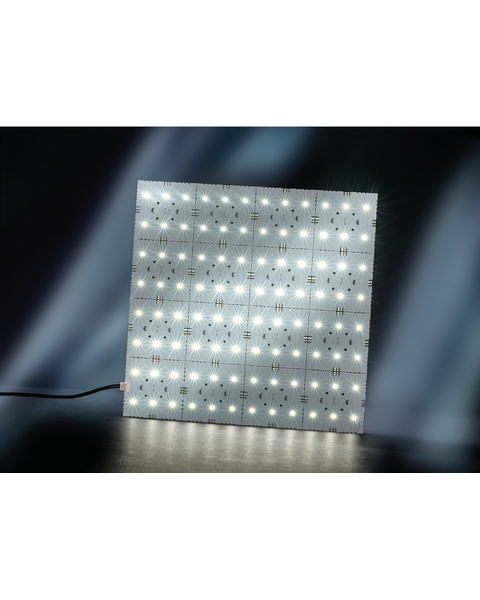

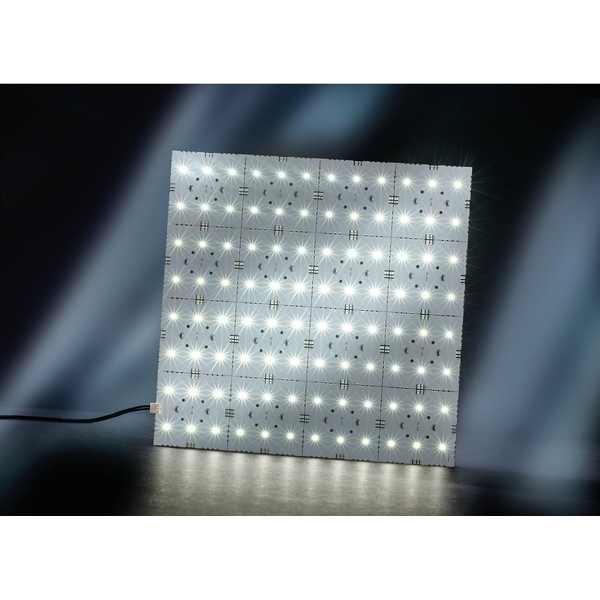

Final Sale, 12-inch x 12-inch LED “Snap” Lighting Panels, 24V/8W per Square Ft., Trimmable to 3 x 3-inch Minimum Sections, 5000K Cool White

Product Discontinuation AlertThis item has left our catalog. It's either upgraded to a newer model, didn't meet our high customer satisfaction standards, or the manufacturer said goodbye. But don't worry, CabinetParts is always here with top-notch alternatives.


All the product info you could ask for...

  • Size Info

  • Warranty : Commercial grade 5-year warranty
  • Actual Product Width (Inches) : 12 Inch
  • Actual Product Height (Inches) : 1/20 Inch
  • Dimmable : Dimmable
  • Length : 12 Inch

  • Other Important Info

  • Product Series : TL48 - Snap Panels
  • Includes : (1) Panel, Screws and Mounting Clips
  • Product Type : Panel
  • Bulb Type : LED
  • Full Product Dimensions : 12"W x 12"D x 0.05"H
  • Lumens : 900
  • Actual Product Weight (lbs) : 1.5 lbs
  • Color Temperature : 5000K Cool White
  • Product Finish : White
  • Voltage : 24 V
  • Country of Origin : China
  • Wattage : 8 W
  • Material : Aluminum
  • Trimmable : Yes
  • Footcandles : 10202
  • Linkable : Yes
  • Efficacy : 112
  • Diode Life (Hours) : 50000
  • Mount Type : Surface
  • Bream Spread : 120 Degrees
  • Input Voltage : 24V
  • Width : 12
  • Safety Listing : UL
  • Height : 0.0625
  • Material Breakdown : Aluminum; Plastic; Silicon
  • Application Type : Displays, Exhibits, Signage, Store Fixtures, Uplighting Countertops, Back Splashes (Backlighting), Modesty Panels, Cabinets
  • Material Breakdown Percentage : 70;20;10
  • Key Features : Sold as 12" x 12" panels with (16) 3" x 3" snappable squares on each panel
    Panel squares are tileable using our simple DIY connectors (no soldering necessary)
    Plastic clips and screws are included with each panel for mounting purposes
    Offered in 15W/sqft (high) and 8W/sqft (standard)
    Requires just 1-2" separation between panel and surface being illuminated (depends on the translucent properties of the surface) for even illumination
  • Shipping and Return Info : Final Sale. No Returns.
