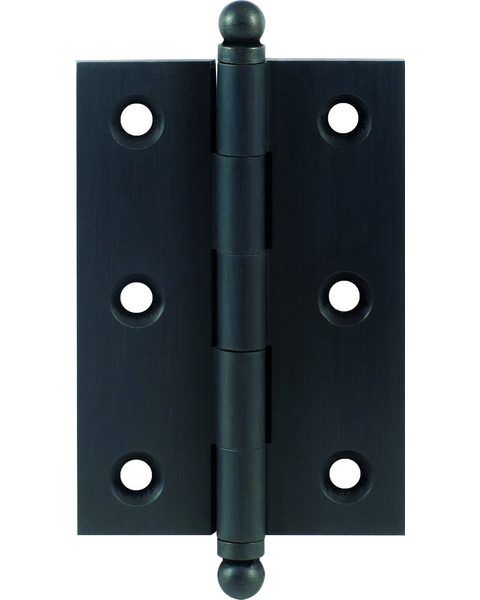

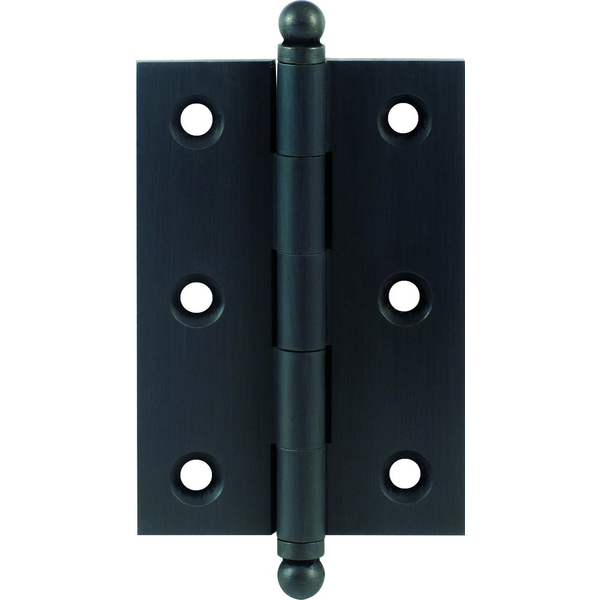

2-1/2 x 1-3/4 Inch Five Knuckle Mortised Butt HInge, Oil Rubbed Bronze

Our Item Number VMO-60-2517-613

This five knuckle, loose pin, solid extruded mortise cabinet hinge is of the highest quality construction from Von Morris by Eric Morris & Company

$
53.77
$57.82
SAVE 7%
Ends Oct 25

Finish: Oil Rubbed Bronze
Oil Rubbed Bronze Polished Nickel Satin Nickel

Product Info Hinge Thickness: 0.08 Inch, Screw size: #6 x 3/4 Inch, Product Finish: Bronze, Style: Mortise, Bearing: Plain Bearing, See more product details
Qty:


Large Project?

Orders $2500+ Qualify for Special Discounts.

Build your item list and get a Quick Quote

view bid cart
Compare this item

All the product info you could ask for...

  • Size Info

  • Hinge Width (height) : 2-1/2 Inch
  • Overall Width (Height) : 3-1/8 Inch
  • Hinge Length (width) : 1-3/4 Inch
  • Hinge Thickness : 0.08 Inch
  • Screw size : #6 x 3/4 Inch

  • Manufacturer Info

  • Manufacturer : Von Morris
  • Manufacturer Part # : 60-2517-613
  • Manufacturer Finish : Oil Rubbed Bronze

  • Other Important Info

  • Product Type : Mortised Butt Hinge
  • Product Finish : Bronze
  • Style : Mortise
  • Material : Solid Forged Brass
  • Bearing : Plain Bearing
  • Key Features : Classic Design with Ball Finial
    Cabinet hinges may be enhanced with Urn or Flat Finials
    All finials are threaded into the barrel of the hinge to prevent the pin from rising.
    All finials are sized to match the diameter of the hinge barrels to which they are mounted.
    Hinges are individually hand polished assuring an even finish with no unpolished areas. Von Morris extruded hinges are available in over 30 standard finishes
  • Hinge Body : Hinge body is manufactured from CDA alloy 38500 brass. It is machined from an extruded bar, resulting in a hinge with high strength and precision tolerances. The hinges are beveled at the barrel to provide a close fit when the hinge is both open and closed.
  • Pin Type : Pins are machined from 304 series Stainless Steel for high durability and resistance to rust. One end is rounded to facilitate re-assembly, while the other end is knurled to keep the pin from dropping through the hinge barrel during re-assembly. The pin is held in place by the threaded finials and can be easily removed by unthreading the finials and tapping the pin up from the bottom.
  • Screw Type : All hinges are provided with type "A" tapping screws. These are solid brass, flat head, counter sunk, undercut phillips head screws. All screws are lacquered to prevent tarnishing. Screws are bagged either four per bag or six per bag to facilitate sales of half pairs.
  • Includes Screws : Yes
  • Filials : Cabinet hinges come with threaded ball finials installed. Other finials are available, packed in sets of four.
  • Installation Type : Screw
  • Hinge Mount : Inset
  • Overlay : Inset
  • Soft Close : No
  • Self Close : No
  • Cabinet Type : Faceframe & Frameless
  • Demountable : Yes
  • 3-Way Adjustable : No
  • Number of Holes : 6
  • Number of Knuckles : 5

  • Manufacturer Resources

Back to Top
back to top

Reviews about our customers experience

"These reviews are from our Customers who have purchased these products."
  • 4 of 5 | October 21st, 2026

    The actual product is a 5. However, The center point for the drill location is not the standard 22.5 mm. The hinge is actually designed to function with several mm more. This would have given the desired full overlay when installed. One little slip of pap

  • 5 of 5 | October 20th, 2026

    Excellent no hassles was just exactly what I wanted

  • 4 of 5 | October 20th, 2026

    came sooner than expected

  • 4 of 5 | October 19th, 2026

    glad to receive the parts in a better time frame than most cabinet suppliers

  • 4 of 5 | October 19th, 2026

    It would be great to have instructional information on website for the products you sell.
