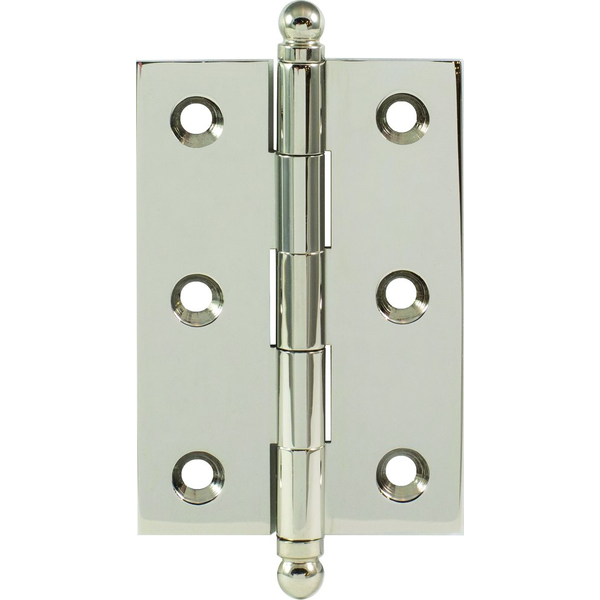

2-1/2 x 1-3/4 Inch Five Knuckle Mortised Butt HInge, Polished Nickel

Our Item Number VMO-60-2517-618

This five knuckle, loose pin, solid extruded mortise cabinet hinge is of the highest quality construction from Von Morris by Eric Morris & Company

$
53.77
$57.82
SAVE 7%
Ends Sep 19

Finish: Polished Nickel
Oil Rubbed Bronze Polished Nickel Satin Nickel

Product Info Hinge Thickness: 0.08 Inch, Screw size: #6 x 3/4 Inch, Product Finish: Nickel, Style: Mortise, Bearing: Plain Bearing, See more product details
Qty:


Large Project?

Orders $2500+ Qualify for Special Discounts.

Build your item list and get a Quick Quote

view bid cart
Compare this item

All the product info you could ask for...

  • Size Info

  • Hinge Width (height) : 2-1/2 Inch
  • Overall Width (Height) : 3-1/8 Inch
  • Hinge Length (width) : 1-3/4 Inch
  • Hinge Thickness : 0.08 Inch
  • Screw size : #6 x 3/4 Inch

  • Manufacturer Info

  • Manufacturer Finish : Polished Nickel
  • Manufacturer : Von Morris
  • Manufacturer Part # : 60-2517-618

  • Other Important Info

  • Product Finish : Nickel
  • Style : Mortise
  • Material : Solid Forged Brass
  • Bearing : Plain Bearing
  • Key Features : Classic Design with Ball Finial
    Cabinet hinges may be enhanced with Urn or Flat Finials
    All finials are threaded into the barrel of the hinge to prevent the pin from rising.
    All finials are sized to match the diameter of the hinge barrels to which they are mounted.
    Hinges are individually hand polished assuring an even finish with no unpolished areas. Von Morris extruded hinges are available in over 30 standard finishes
  • Hinge Body : Hinge body is manufactured from CDA alloy 38500 brass. It is machined from an extruded bar, resulting in a hinge with high strength and precision tolerances. The hinges are beveled at the barrel to provide a close fit when the hinge is both open and closed.
  • Pin Type : Pins are machined from 304 series Stainless Steel for high durability and resistance to rust. One end is rounded to facilitate re-assembly, while the other end is knurled to keep the pin from dropping through the hinge barrel during re-assembly. The pin is held in place by the threaded finials and can be easily removed by unthreading the finials and tapping the pin up from the bottom.
  • Screw Type : All hinges are provided with type "A" tapping screws. These are solid brass, flat head, counter sunk, undercut phillips head screws. All screws are lacquered to prevent tarnishing. Screws are bagged either four per bag or six per bag to facilitate sales of half pairs.
  • Includes Screws : Yes
  • Filials : Cabinet hinges come with threaded ball finials installed. Other finials are available, packed in sets of four.
  • Installation Type : Screw
  • Hinge Mount : Inset
  • Overlay : Inset
  • Soft Close : No
  • Self Close : No
  • Cabinet Type : Faceframe & Frameless
  • Demountable : Yes
  • 3-Way Adjustable : No
  • Number of Holes : 6
  • Number of Knuckles : 5
  • Product Type : Mortised Butt Hinge

  • Manufacturer Resources
