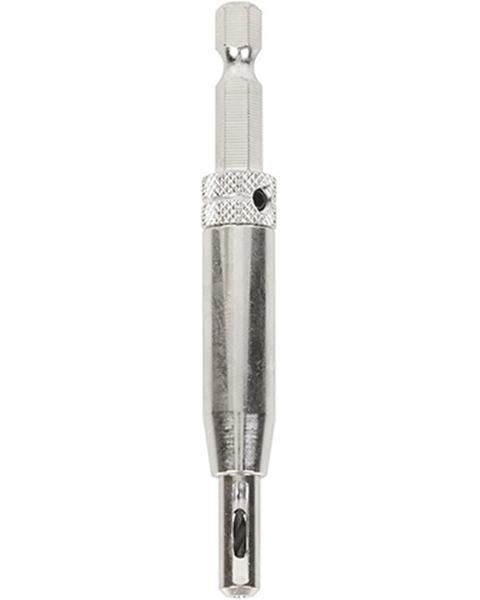

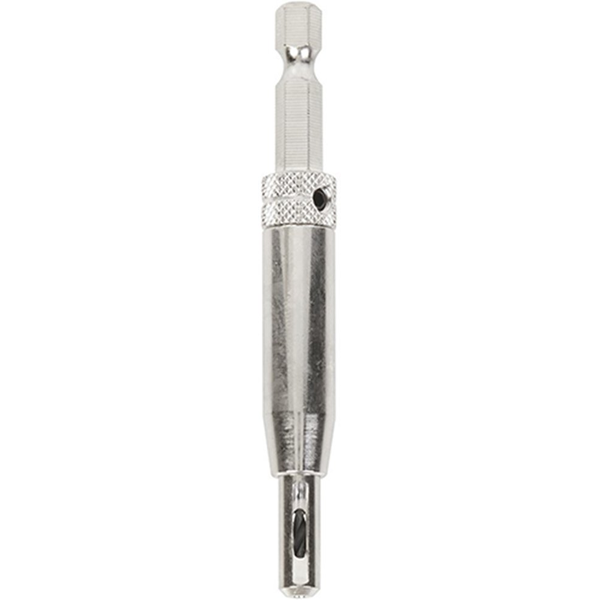

Amana 608524 Self Centering 9/64" Diameter Pilot Hole Drill Bit Guide
Our Item Number AMN-608-524
Amana's Timberline Self-Centering Drill Bit Guides models 608-520 (5/64"), 608-522 (7/64"), 608-524 (9/64"), and 608-526 (11/64") are precision tools designed to make hardware installation fast, accurate, and frustration-free. Each features a spring-loaded, self-centering tip that aligns perfectly with hinge or strike plate holes, ensuring clean, straight pilot holes every time. The bits are made from high-speed steel for durability and are paired with a ¼" hex shank for quick-change compatibility. With a bright, corrosion-resistant finish and thoughtfully engineered construction, these guides are a must-have for cabinet makers, installers, and anyone who demands consistent, professional results.
$
17.04 Each
$24.34
SAVE 30%
Ends Jun 30
Ends Jun 30
Product Info Overall Length: 6", Diameter: 9/64", Product Finish: Steel, Tip/Point: Vix, For: #10 Screws, See more product details
Large Project?
Orders $2500+ Qualify for Special Discounts.
Build your item list and get a Quick Quote
view bid cartAll the product info you could ask for...
-
Size Info
- Overall Length : 6"
- Diameter : 9/64"
-
Manufacturer Info
- Manufacturer : Amana Tool
- Manufacturer Part # : 608-524
- Manufacturer Finish : Carbon Steel
-
Other Important Info
- Product Type : Piloting (Vix) Bit
- Product Finish : Steel
- Tip/Point : Vix
- For : #10 Screws
