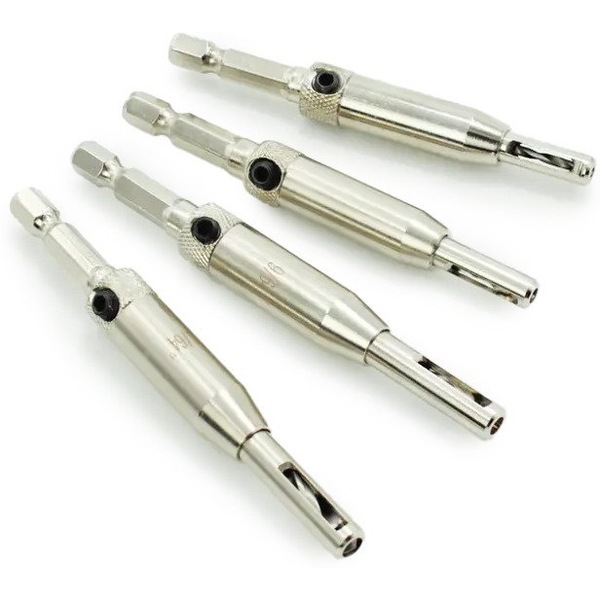

Professional Vix Bit Set, Self-Centering Hinge Drill Bits, Essential Piloting Drill Bits

Product Discontinuation AlertThis item has left our catalog. It's either upgraded to a newer model, didn't meet our high customer satisfaction standards, or the manufacturer said goodbye. But don't worry, CabinetParts is always here with top-notch alternatives.

See Newer Models

All the product info you could ask for...

  • Size Info

  • Set Includes : 5/64 inch, 7/64 inch, 9/64 inch, 11/64 inch Vix Bits + 1 Wrench
  • Special Feature : Spring-loaded guide with drill bit depth window
  • Key Features : The spring-loaded guides also feature a window to show the drill bit depth, facilitating easy adjustments. The included sizes (7/64", 9/64", 11/64") are the most commonly used for hinge screw holes.
    5/64'' Drill Bit: Perfect for drilling holes in smaller hinges and hardware like decorative boxes. Creates a hole of about 2mm, ideal for 2.2-2.8mm self-tapping screws.
    7/64'' Drill Bit: This size is excellent for medium to full-size hinges and hardware. It drills a hole of about 2.8mm, perfect for 3-3.5mm self-tapping screws.
    9/64'' Drill Bit: Ideal for larger hardware pieces, this bit drills a hole of about 3.5mm, suitable for 4-4.5mm self-tapping screws.
    11/64'' Drill Bit: Perfect for door hinges, gate locks, and other large hardware. It drills a hole of about 4.5mm, perfect for use with 5-5.5mm self-tapping screws.

  • Manufacturer Info

  • Manufacturer Part # : CP-TLS-DB4SET

  • Other Important Info

  • Material : Brass High-Speed Steel
  • Appearance : Electroplated
  • Shank : Hex Shank
  • Ideal Usage : Door hinge installations and other hardware
