Concealed 35mm Hinge Boring Hole Jig and Drill Guide for Cabinet Door Installation

  Rating 4.3 | 7 Reviews in the past 24 months | Our Item Number CP-TLS-CHJ-35

The CabinetParts Hinge Drilling Jig delivers professional accuracy and repeatable results for every hinge installation. Built-in indexing tabs and measuring scales ensure precise hinge positioning, while the bit guide and stop collar provide consistent drilling depth and alignment. Adjustable cams make it easy to set the correct hinge offset for any door style. Designed for use with any standard drill, no special tools required, this jig combines strong, lightweight construction with a durable carbide-tipped bit for long-lasting reliability and easy handling on every project.

$
19.86 Each
$28.37
SAVE 30%
Ends Aug 14
Product Info Width: 3-3/4 inch (96mm), Material: Plastic, Carbide, Product Finish: Blue, See more product details
Qty:       Each


Large Project?

Orders $2500+ Qualify for Special Discounts.

Build your item list and get a Quick Quote

view bid cart
Compare this item

All the product info you could ask for...

  • Size Info

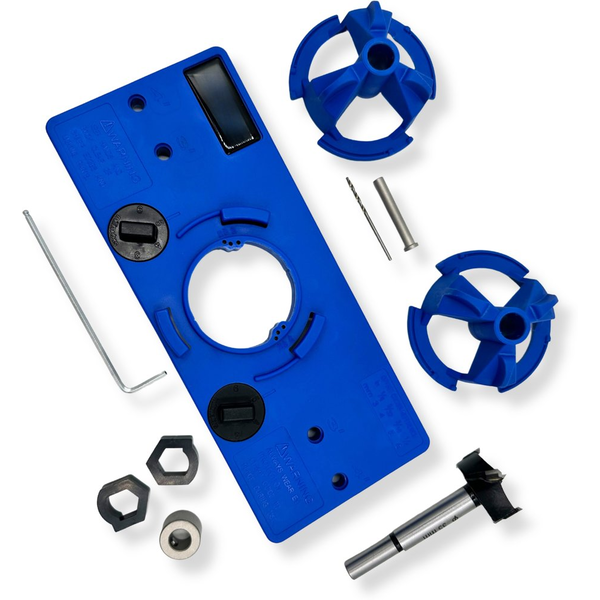

  • Includes : 1 Frame, 2 Brackets, 35mm Hole Opener, Checking ring and hexagon socket wrench, Locating rod, Drill bit
  • Length : 8-15/16 inch (227mm)
  • Width : 3-3/4 inch (96mm)
  • Ideal Usage : Drilling holes for 35mm concealed hinges.

  • Manufacturer Info

  • Manufacturer Part # : CP-TLS-CHJ-35

  • Other Important Info

  • Material : Plastic, Carbide
  • Product Type : Hinge Jig Drill Guide Set
  • Product Finish : Blue
  • Key Features : This jig is compatible with any drill and includes a carbide tipped bit.
