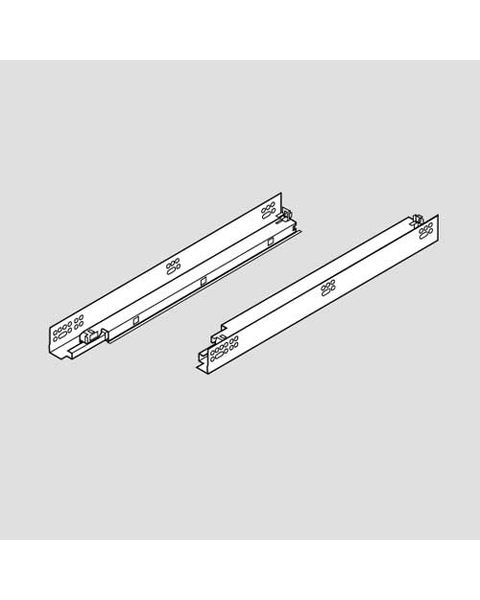

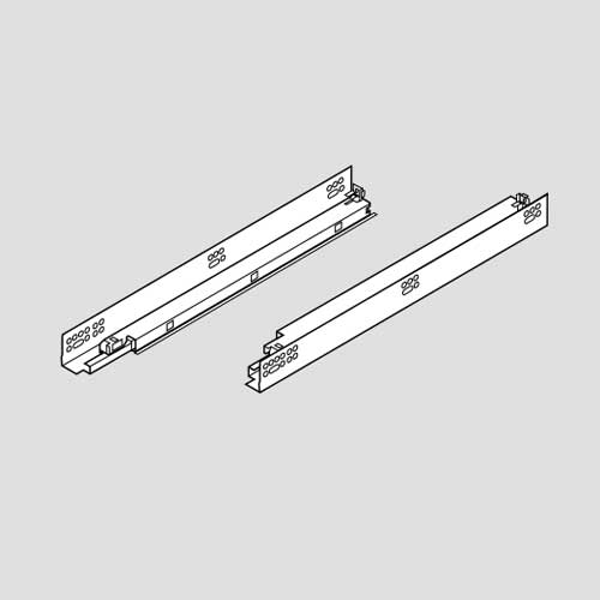

Tandem 569H Series, 21 Inch, 5/8 Inch Max Drawer Thickness, Blumotion Soft Close Undermount Drawer Slide, Heavy Duty Full Extension, 150 lb Load Rating
Product Discontinuation AlertThis item has left our catalog. It's either upgraded to a newer model, didn't meet our high customer satisfaction standards, or the manufacturer said goodbye. But don't worry, CabinetParts is always here with top-notch alternatives.See Newer Models
All the product info you could ask for...
-
Size Info
- Overall Length : 21-9/16"
- Length : 21"
- Drawer Material Thickness : 5/8"
-
Manufacturer Info
- Manufacturer : Blum
- Manufacturer Part # : 569H5330B
- Manufacturer Series Name : 569H With BLUMOTION
-
Other Important Info
- Product Type : Drawer Slide: Soft-Close
- Product Finish : Zinc Coated
- Notes : For 5/8" maximum drawer thickness
Full extension
Locking devices enable easy drawer insertion & removal
Integrated BLUMOTION
For Panel or Blocked-Out Face cabinets only - Load Rating : 150 lbs
- Extension : Full
- Material : Steel
- Closing Type : Soft Closing
