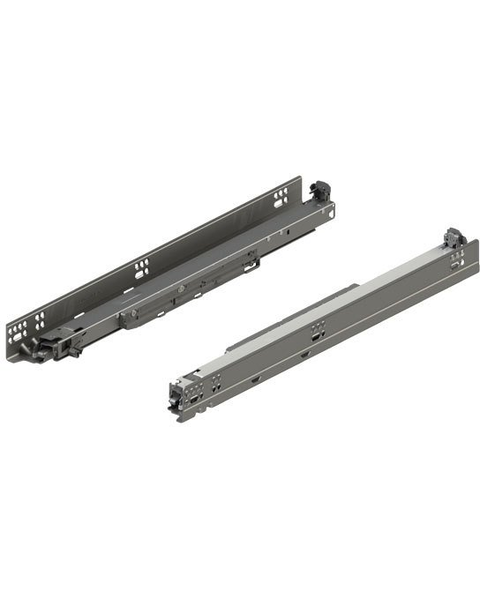

Blum 21" Length Movento 763H Soft-Close Undermount Drawer Slide for Face-Frame and Frameless Construction, Front Locking Clips Required, 125 lbs Weight Capacity, Zinc
Rating 4.7 | 1,281 Reviews | Our Item Number BS-763H5330S
Elevate your drawer experience with Blum's Movento undermount slide. Featuring full-extension capability and BLUMOTION soft-close, this slide delivers whisper-quiet and smooth operation every time. Built for strength, it boasts a 125 lb static load capacity while supporting four-dimensional adjustment and bottom-mount installation for perfect alignment. Compatible with TIP-ON BLUMOTION and SERVO-DRIVE systems, it's a smart, seamless choice for modern, high-quality cabinetry.
$
34.83 Pair
$43.54
SAVE 20%
Ends Oct 25
Ends Oct 25
Length:
Need Help? Contact Us Now
Product Info Drawer Width: 1-11/64", bearing height: 1-1/8", Cabinet Width: 1-5/8", Mounting Width: 13/16", Product Length: 21", See more product details
Large Project?
Orders $2500+ Qualify for Special Discounts.
Build your item list and get a Quick Quote
view bid cartAll the product info you could ask for...
-
Size Info
- Internal Cabinet Depth : 21-15/16"
- Drawer Width : 1-11/64"
- bearing height : 1-1/8"
- Cabinet Shank Height : 1-7/8"
- Cabinet Width : 1-5/8"
- Mounting Width : 13/16"
- Product Length : 21"
-
Manufacturer Info
- Manufacturer : Blum
- Manufacturer Part # : 763H5330S
- Manufacturer Finish : Zinc Plated
-
Other Important Info
- Material : Steel
- Installation Type : Side Mount
- Extension Type : Full
- Series : Movento
- Application : 1/2" Or 5/8" Drawer Material
- Closing Type : Soft-Close
- Load Capacity : 125 Lbs
- Includes : Screws, back attachment by socket
- Product Type : Undermount Slide
- Product Finish : Zinc
- Dynamic Load Rating : 88-3/16 Lbs
Manufacturer Resources
Required Front Locking Clips, Left and Right Required
-
Movento Vertical Locking Device Right Hand
Movento Vertical Locking Device Left Hand
Blum Movento Right-Handed Standard 2-Way Locking Device, Includes Up and Down, and Side-to-Side Adjustability
Blum Movento Left-Handed Standard 2-Way Locking Device, Includes Up and Down, and Side-to-Side Adjustability -Rear Mounting Brackets Required for Face-Frame Construction
Tandem Rear Mounting Bracket, Sold Individually
Tandem Narrow Rear Mounting Bracket Ea
Tandem Dowel Mount Rear Socket
Tandem Screw Mount Rear Socket Other - MOVENTO Drawer Slides by Blum
-
![Blum 21" Length Movento 763 Soft-Close Undermount Drawer Slide for Side-Mount Frameless Construction, Front Locking Clips Required, 125 lbs Weight Capacity, Zinc](https://cdn-media.cabinetparts.com/primary_product.jpg?id=9217&p=sq-sm "Blum 21" Length Movento 763 Soft-Close Undermount Drawer Slide for Side-Mount Frameless Construction, Front Locking Clips Required, 125 lbs Weight Capacity, Zinc")

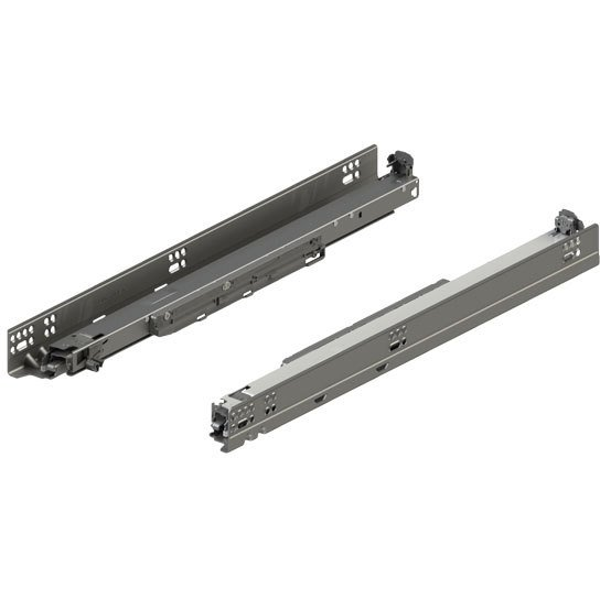

Blum 21" Length Movento 763 Soft-Close Undermount Drawer Slide for Side-Mount Frameless Construction, Front Locking Clips Required, 125 lbs Weight Capacity, Zinc
