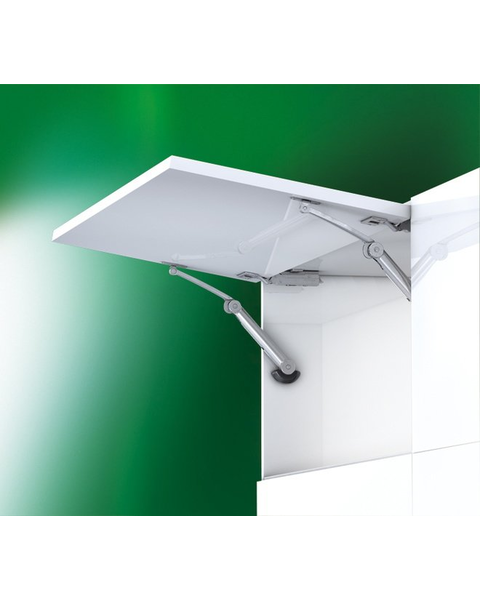

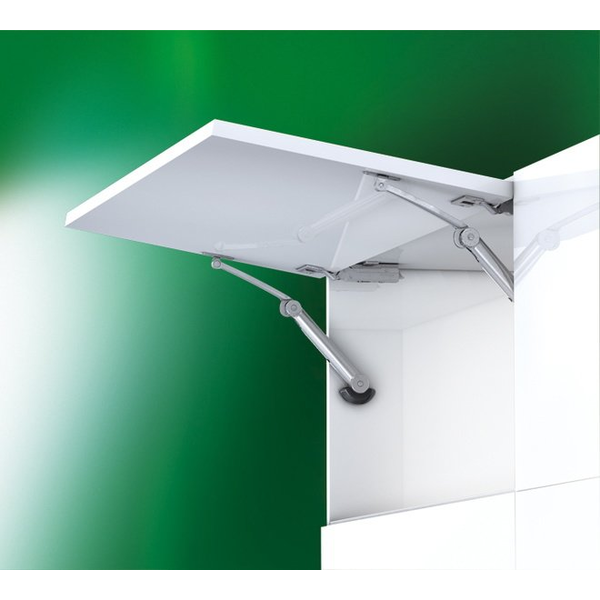

T-105 Single Door Flap Stay, Door Widths up to 47-1/4” Wide, 9-27/32, 19-11/16” High, Variable 45 to 105 Degrees Opening Angle, Top Hinges Required, Nickel Plated

  Rating 3.8 | 4 Reviews in the past 24 months | Our Item Number GHA-F151145221513

Our Kinvaro lifter systems redefine the principle of the classic wall cabinet. Stable and reliable in movement, easy and quiet in application, ergonomically well designed and comfortable to operate. Kinvaro represents innovative design and functional movement.

$
32.99 Each
$47.13
SAVE 30%
Ends Jun 21

Side:

Product Info Length: 3-17/32 Inch, Width: 7/8 Inch, Product Series: Kinvaro, Collection: Flap Stay, Category: Flap, See more product details
Qty:       Each


Large Project?

Orders $2500+ Qualify for Special Discounts.

Build your item list and get a Quick Quote

view bid cart
Compare this item

All the product info you could ask for...

  • Size Info

  • Key Features : Spring-supported opening function
    Convenient access, flap lifts clear of thework area
    For wooden flaps
    Allows additional cabinet installation above
    Maintenance-free, no re-adjustment required
    High-quality zinc diecasting, nickel-plated
    Range of flaps:Width: up to 47-1/4 Inch (up to 1200mm) Height: 9-27/32 - 19-11/16 (250 - 500mm)
  • Length : 3-17/32 Inch
  • Width : 7/8 Inch
  • Height Projection : 7-3/32 Inch

  • Manufacturer Info

  • Manufacturer : Grass
  • Manufacturer Part # : F151145221513

  • Other Important Info

  • Product Type : Lift System
  • Includes : Rght hand Lifter with adjustable springs and black cover caps.
  • Product Series : Kinvaro
  • Collection : Flap Stay
  • Category : Flap
  • Cabinet Height Range : Refer to chart in catalog p.16
  • Flap Weight Including Handle : Refer to chart in catalog p.16
  • Opening Angle : Variable 45 Degrees to 105 Degrees
  • Box Quantity : 1
  • Material : Steel
  • Finish Description : Nickel
  • Warranty : Yes
  • ADA Friendly : Yes
  • Meets ANSI/BHMA Standards : Yes
  • Load Capacity : 2.4 - 19.6 lbs
  • Side : Right

  • Manufacturer Resources
