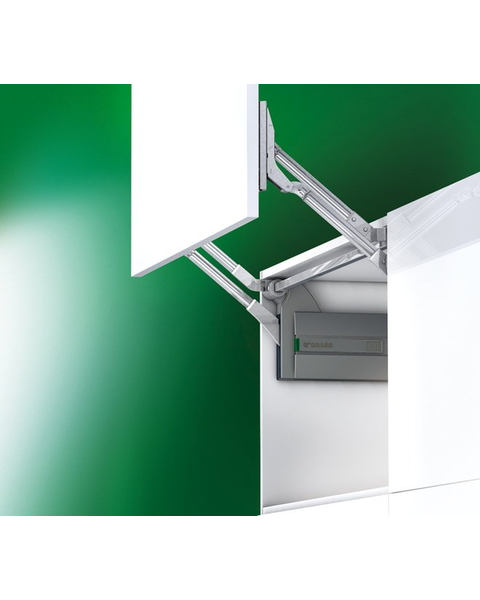

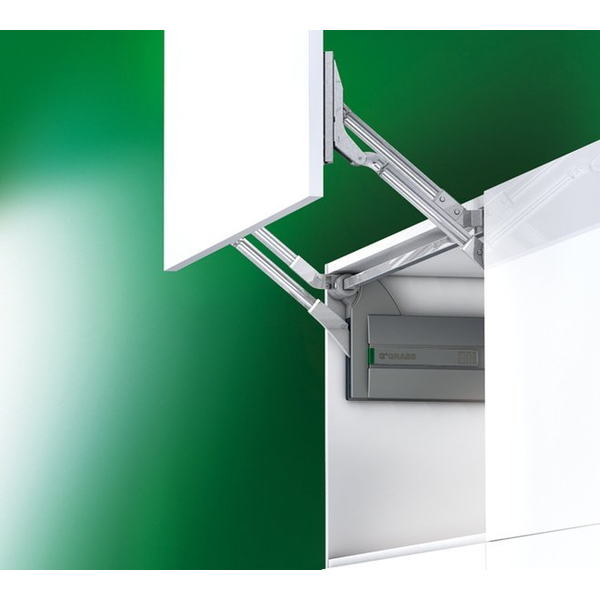

L-80 Parallel Lift System for Cabinet Height 16-1/8, 16-7/8 Inch, Spring B, Grey

  Rating 4.7 | 3 Reviews in the past 24 months | Our Item Number GHA-F152145281201

Our Kinvaro lifter systems redefine the principle of the classic wall cabinet. Stable and reliable in movement, easy and quiet in application, ergonomically well designed and comfortable to operate. Kinvaro represents innovative design and functional movement.

$
285.49 Each
$407.84
SAVE 30%
Ends Aug 05

Cabinet Height Range:

Spring Type:

Product Info Length: 10-1/4 Inch, Width: 1-13/32 Inch, Finish Description: Grey, Warranty: Yes, ADA Friendly: Yes, See more product details
Qty:       Each


Large Project?

Orders $2500+ Qualify for Special Discounts.

Build your item list and get a Quick Quote

view bid cart
Compare this item

All the product info you could ask for...

  • Size Info

  • Length : 10-1/4 Inch
  • Width : 1-13/32 Inch
  • Height Projection : 23-3/16 Inch
  • Key Features : Holds flap securely in any position
    Extremely smooth movement
    Adjustable spring force
    Integrated adjustable closing damper
    Flap with 3-dimensional adjustment - height, side, angle: Direct adjustment +/- 1.5mm
    Hinge with 3-dimensional adjustment - height, side, depth
    Allows the use of cornices, pelmets, and attached lights
    Wide range of applications for many different flap materials
    Fast, tool-free clip fitting of the front
    Face frame adapter available
    Pre-assembled Euro screws and positioning pins for easy mounting of the fitting to the side wall
    Extremely strong
    Weight 4 to 32 lb (1.9 to 14.6 kg)
    Range of flaps: Width: 17-23/32 - 47-1/4 Inch (450 - 1200mm), Height: 13-25/32 - 23-5/8 Inch (350 - 600mm)
  • Cabinet Height Range : 16-1/8 - 16-7/8 Inch (410 - 429 mm)

  • Manufacturer Info

  • Manufacturer : Grass
  • Manufacturer Part # : F152145281201

  • Other Important Info

  • Finish Description : Grey
  • Warranty : Yes
  • ADA Friendly : Yes
  • Meets ANSI/BHMA Standards : Yes
  • Load Capacity : 9.9 - 17.6 lbs
  • Product Type : Lift System
  • Includes : Left hand & right hand Lifter with door mounting brackets and gray cover caps, (1) set of spring tensions, and (1) cross bar.
  • Product Series : Kinvaro
  • Collection : Parallel Lifter
  • Category : Parallel
  • Flap Weight Including Handle : 9.9-17.6 lbs (4.5-8 kg)
  • Spring Type : Spring B
  • Box Quantity : 1
  • Material : Steel

  • Manufacturer Resources

Back to Top
back to top

Our customers say Grass products...

  4.7 out of 5
based on 3 ratings

"These reviews are from our customers who have purchased Grass products."
  • 2 of 2 people found the following review helpful
    5 of 5 "drop flap" hinges for front of key board drawer March 17th, 2020
    by David from Lebanon, TN

    Tiomos/Grass hinges - fine quality! And quick shipping too. Thanks

    This review is about similar Grass Hinges. (GHA-F053139671223)

    Was this review helpful? yes no

  • 1 of 2 people found the following review helpful
    5 of 5 Excellent August 20th, 2020
    by Philip from Claremont, CA

    I needed an opening mechanism for a downward cabinet door. This mechanism was the only one that I found that would work in my situation. Installation was pretty straight forward. You do need to download the manual from manufacturer to figure out where to drill holes for mounting. The tension is adjustable. Soft close and soft open works extremely well.

    This review is about similar Grass Hinges. (GHA-F053139661607)

    Was this review helpful? yes no

  • 1 of 1 people found the following review helpful
    4 of 5 Easy install, wish it can have greater degree of adjustment August 20th, 2020
    by Philip from Claremont, CA

    I needed a special hinge for a cabinet door that opens downward. This hinge was easy to install, looks great with excellent workmanship. The only issue is that I wish it can be adjusted a bit more than a few millimeters. Overall, I'm satisfied with this purchase.

    This review is about similar Grass Hinges. (GHA-F053139671223)

    Was this review helpful? yes no
