Hinges Lid and Flap Stays Kinvaro D/Tiomos Flap Hinge System

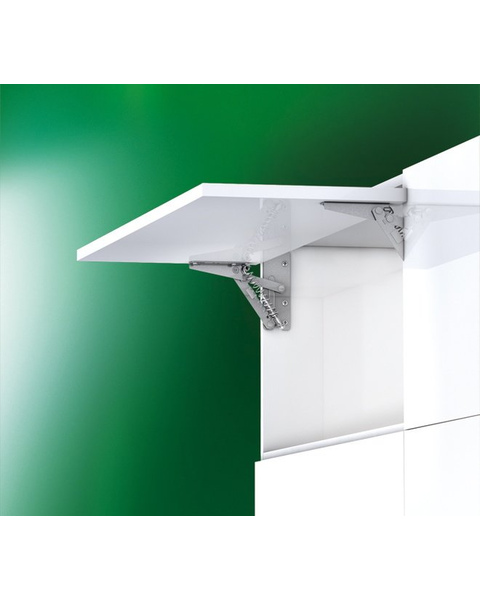

Loading from Primary Photo

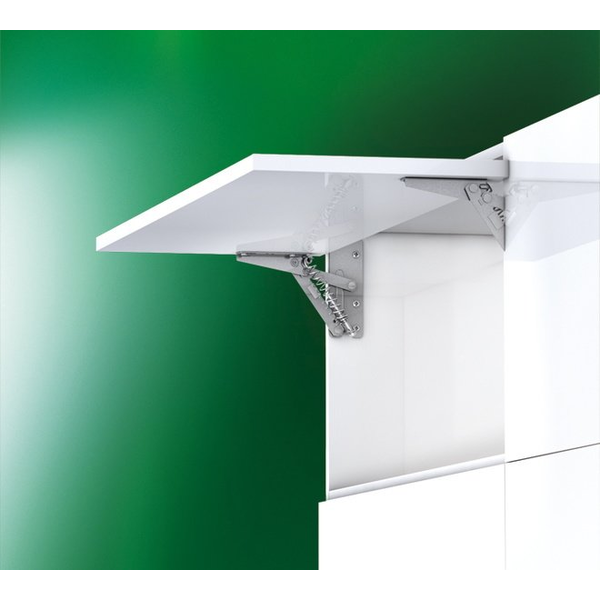

T-57, Single Door Lift System, Flap Widths up to 47-1/4" Wide x 11-13/16 to 23-5/8" Height, 75 or 90-degree- Nickel Plated

Product Discontinuation AlertThis item has left our catalog. It's either upgraded to a newer model, didn't meet our high customer satisfaction standards, or the manufacturer said goodbye. But don't worry, CabinetParts is always here with top-notch alternatives.


All the product info you could ask for...

  • Size Info

  • Length : 1-13/16 Inch
  • Width : 1-5/16 Inch
  • Height Projection : 5-7/16 Inch
  • Key Features : Easy to fit
    Adjustable spring force
    Adjustable flap height +/- 1.0mm
    No hinges fitted to the top panel
    Allows additional cabinet installation above
    For wooden flaps
    Weight 2.2 to 13.7 lb (1.0 to 6.2 kg)
    Range of flaps:Width: up to 47-1/4 Inch (up to 1200mm) Height: 11-13/16 - 23-5/8 Inch (300 - 600mm)
    High-quality finish, nickel-plated

  • Manufacturer Info

  • Manufacturer : Grass
  • Manufacturer Part # : F151145224517

  • Other Important Info

  • Product Type : Lift System
  • Includes : Left hand & right hand Lifter with adjustable springs.
  • Product Series : Kinvaro
  • Collection : Flap Lifter
  • Category : Flap
  • Cabinet Height Range : Refer to chart in catalog p.16
  • Flap Weight Including Handle : Refer to chart in catalog p.16
  • Opening Angle : Adjustable 75 or 90 Degrees
  • Box Quantity : 1
  • Material : Steel
  • Finish Description : Nickel
  • Warranty : Yes
  • ADA Friendly : Yes
  • Meets ANSI/BHMA Standards : Yes
  • Load Capacity : 2.2 - 13.7 lbs
