Hinges Lid and Flap Stays Kinvaro D/Tiomos Flap Hinge System

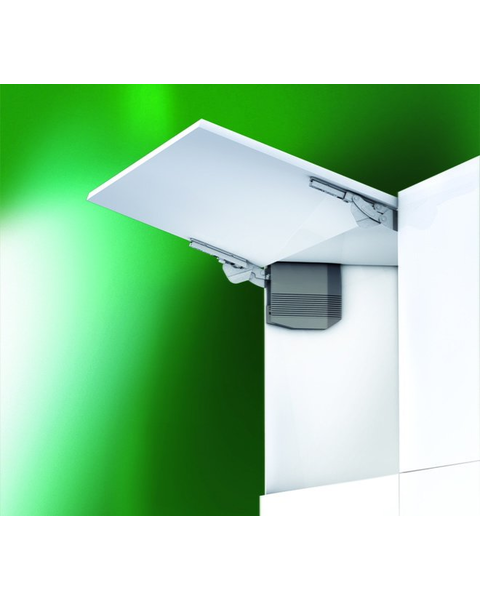

Loading from Primary Photo

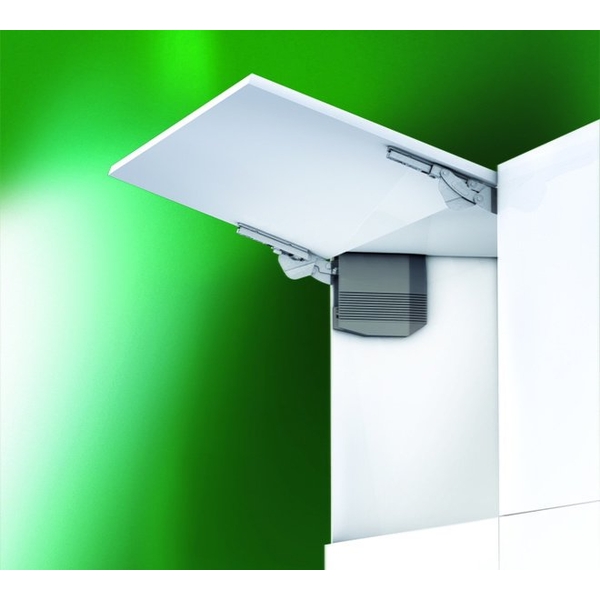

T-76 Single Door Soft Close Lift System, Flap Widths up to 47-1/4” Wide, 15-3/4” to 23-5/8” High, Variable Opening Angle 45 to 100- Degrees, Grey

Product Discontinuation AlertThis item has left our catalog. It's either upgraded to a newer model, didn't meet our high customer satisfaction standards, or the manufacturer said goodbye. But don't worry, CabinetParts is always here with top-notch alternatives.


All the product info you could ask for...

  • Size Info

  • Key Features : Extremely comfortable opening due tospring-supported opening mechanism
    Adjustable spring force
    Integrated adjustable closing damper
    Flap 3-dimensionally adjustable - height,side, angle: direct adjustment +/- 1.5mm
    No hinges fitted to the top panel
    Allows additional cabinet installation above
    For wooden flaps
    Fast, tool-free clip fitting of the front
    Face frame adapter available Weight 11.5 to 24.25 lb (5.2 to 11.0 kg)
    Range of flaps:Width: up to 47-1/4 Inch (up to 1200mm) Height: 15-3/4 Inch - 23-5/8 Inch (400 - 600mm)
  • Length : 7-1/8 Inch
  • Width : 1-11/16 Inch
  • Height Projection : 6-1/4 Inch

  • Manufacturer Info

  • Manufacturer : Grass
  • Manufacturer Part # : F151147706201

  • Other Important Info

  • Product Type : Lift System
  • Includes : Left hand & right hand Lifter with door mounting brackets and gray cover caps, (1) set of balance springs pre-installed.
  • Product Series : Kinvaro
  • Collection : Flap Lifter
  • Category : Flap
  • Cabinet Height Range : Refer to chart in catalog p.16
  • Flap Weight Including Handle : Refer to chart in catalog p.16
  • Opening Angle : Variable 45 Degrees to 110 Degrees
  • Box Quantity : 1
  • Material : Steel
  • Finish Description : Grey
  • Warranty : Yes
  • ADA Friendly : Yes
  • Meets ANSI/BHMA Standards : Yes
  • Load Capacity : 11.5 - 24.3 lbs

  • Manufacturer Resources

Back to Top
back to top

Our customers say Grass products...

  3.8 out of 5
based on 4 ratings

"These reviews are from our customers who have purchased Grass products."
  • 2 of 2 people found the following review helpful
    5 of 5 "drop flap" hinges for front of key board drawer March 17th, 2020
    by David from Lebanon, TN

    Tiomos/Grass hinges - fine quality! And quick shipping too. Thanks

    This review is about similar Grass Hinges. (GHA-F053139671223)

    Was this review helpful? yes no

  • 1 of 2 people found the following review helpful
    5 of 5 Excellent August 20th, 2020
    by Philip from Claremont, CA

    I needed an opening mechanism for a downward cabinet door. This mechanism was the only one that I found that would work in my situation. Installation was pretty straight forward. You do need to download the manual from manufacturer to figure out where to drill holes for mounting. The tension is adjustable. Soft close and soft open works extremely well.

    This review is about similar Grass Hinges. (GHA-F053139661607)

    Was this review helpful? yes no

  • 1 of 1 people found the following review helpful
    4 of 5 Easy install, wish it can have greater degree of adjustment August 20th, 2020
    by Philip from Claremont, CA

    I needed a special hinge for a cabinet door that opens downward. This hinge was easy to install, looks great with excellent workmanship. The only issue is that I wish it can be adjusted a bit more than a few millimeters. Overall, I'm satisfied with this purchase.

    This review is about similar Grass Hinges. (GHA-F053139671223)

    Was this review helpful? yes no
