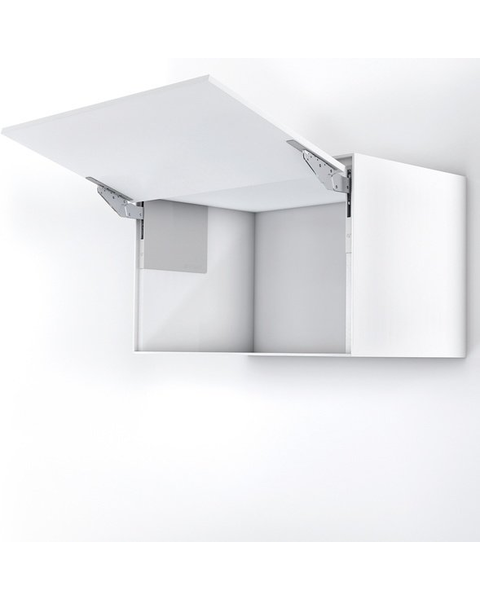

Loading from Primary Photo

T-Slim Lift-Up Flap System for Wooden Fronts, Power Factor 1000-2250, Stone

  Rating 4.7 | 3 Reviews in the past 24 months | Our Item Number GHA-F151149008201

Our Kinvaro lifter systems redefine the principle of the classic wall cabinet. Stable and reliable in movement, easy and quiet in application, ergonomically well designed and comfortable to operate. Kinvaro represents innovative design and functional movement.

$
112.99 Each
$161.41
SAVE 30%
Ends Jun 30

Power Factor:

Finish:

Product Info Length: 7-5/16 Inch, Width: 9/16 Inch, Product Series: Kinvaro, Collection: T Slim, Category: Flap, See more product details
Qty:       Each


Large Project?

Orders $2500+ Qualify for Special Discounts.

Build your item list and get a Quick Quote

view bid cart
Compare this item

All the product info you could ask for...

  • Size Info

  • Height Adjustment : +/- 2.5 mm
  • Side Adjustment : +/- 2.0 mm
  • Depth Adjustment : +3.0 mm / -1.0 mm
  • Length : 7-5/16 Inch
  • Width : 9/16 Inch
  • Height Projection : 6-1/8 Inch

  • Manufacturer Info

  • Manufacturer : Grass
  • Manufacturer Part # : F151149008201

  • Other Important Info

  • Product Type : Lift System
  • Includes : Left hand & right lifter fitting, left hand & right hand front connector, cover caps (3) sets left hand & right hand, (12) x screws, installation instructions.
  • Product Series : Kinvaro
  • Collection : T Slim
  • Category : Flap
  • Key Features : Slim flap fitting for high design requirements and more storage space in the wall cabinet
    Holds flap securely in any position
    Adjustable spring force
    Fast, tool-free clip fitting of the front
    Flap with 3-dimensional adjustment
    Integrated, opening angle reduction clip with optional activation (75 degrees)
    Can be used for flaps made from wood and wood-based products
    All cover caps can be painted
    Integrated Soft-close damper(Soft-close damper can be switched on/off)
  • Power Factor (LF) : 1000-2250
  • Opening Angle : 107 Degrees
  • Box Quantity : 1
  • Material : Steel
  • Finish Description : Stone
  • Warranty : Yes
  • ADA Friendly : Yes
  • Meets ANSI/BHMA Standards : Yes
  • Load Capacity : 4.0 - 24.9 lbs

  • Manufacturer Resources

Back to Top
back to top

Our customers say Grass products...

  4.7 out of 5
based on 3 ratings

"These reviews are from our customers who have purchased Grass products."
  • 2 of 2 people found the following review helpful
    5 of 5 "drop flap" hinges for front of key board drawer March 17th, 2020
    by David from Lebanon, TN

    Tiomos/Grass hinges - fine quality! And quick shipping too. Thanks

    This review is about similar Grass Hinges. (GHA-F053139671223)

    Was this review helpful? yes no

  • 1 of 2 people found the following review helpful
    5 of 5 Excellent August 20th, 2020
    by Philip from Claremont, CA

    I needed an opening mechanism for a downward cabinet door. This mechanism was the only one that I found that would work in my situation. Installation was pretty straight forward. You do need to download the manual from manufacturer to figure out where to drill holes for mounting. The tension is adjustable. Soft close and soft open works extremely well.

    This review is about similar Grass Hinges. (GHA-F053139661607)

    Was this review helpful? yes no

  • 1 of 1 people found the following review helpful
    4 of 5 Easy install, wish it can have greater degree of adjustment August 20th, 2020
    by Philip from Claremont, CA

    I needed a special hinge for a cabinet door that opens downward. This hinge was easy to install, looks great with excellent workmanship. The only issue is that I wish it can be adjusted a bit more than a few millimeters. Overall, I'm satisfied with this purchase.

    This review is about similar Grass Hinges. (GHA-F053139671223)

    Was this review helpful? yes no
