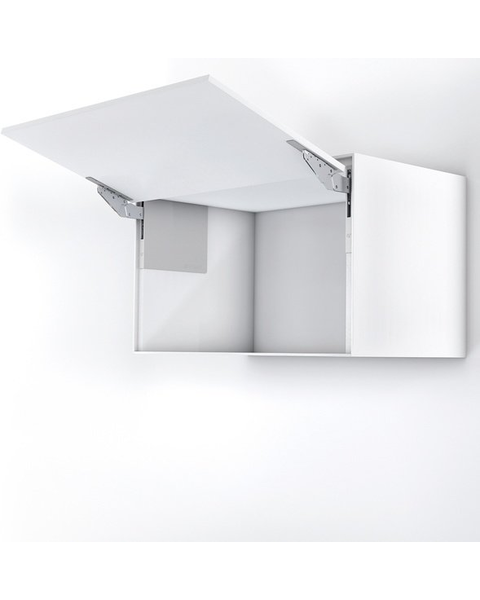

Kinvaro T-Slim Lift-Up Flap System with Soft-Close Damper for Wooden Doors, Power Factor 1000-2250, Silver Covers, Screws, and Instructions included

  Rating 3.8 | 4 Reviews in the past 24 months | Our Item Number GHA-F151149009201

The Kinvaro T-Slim Set for Wood Fronts is a slim flap fitting designed for modern wall cabinets, offering a sleek look while maximizing storage space. It securely holds the flap in any position with an adjustable spring force and features tool-free clip fitting for fast installation. Fine adjustments are easy with 3-dimensional front adjustment (height ±2.5 mm, side ±2.0 mm, depth +3.0 / –1.0 mm). The flap opens to 107°, with an optional 75° reduction clip, and includes an integrated soft-close damper that can be switched on or off. Available with cover caps and adapters in Stone, Ice, or Silver (paintable if needed), it supports wood and wood-based flaps. To select the correct model, calculate the power factor (LF) by multiplying front height (mm) × weight including handle (kg), then choose one of the three available power factor ranges to match your application.

$
112.99 Each
$161.41
SAVE 30%
Ends Jun 21

Power Factor:

Finish:

Product Info Length: 7-5/16 Inch, Width: 9/16 Inch, Product Series: Kinvaro, Collection: T Slim, Category: Flap, See more product details
Qty:       Each


Large Project?

Orders $2500+ Qualify for Special Discounts.

Build your item list and get a Quick Quote

view bid cart
Compare this item

All the product info you could ask for...

  • Size Info

  • Height Adjustment : +/- 2.5 mm
  • Side Adjustment : +/- 2.0 mm
  • Depth Adjustment : +3.0 mm / -1.0 mm
  • Length : 7-5/16 Inch
  • Width : 9/16 Inch
  • Height Projection : 6-1/8 Inch

  • Manufacturer Info

  • Manufacturer : Grass
  • Manufacturer Part # : F151149009201

  • Other Important Info

  • Product Type : Lift System
  • Includes : Left hand & right lifter fitting, left hand & right hand front connector, cover caps (3) sets left hand & right hand, (12) x screws, installation instructions.
  • Product Series : Kinvaro
  • Collection : T Slim
  • Category : Flap
  • Key Features : Slim flap fitting for high design requirements and more storage space in the wall cabinet
    Holds flap securely in any position
    Adjustable spring force
    Fast, tool-free clip fitting of the front
    Flap with 3-dimensional adjustment
    Integrated, opening angle reduction clip with optional activation (75 degrees)
    Can be used for flaps made from wood and wood-based products
    All cover caps can be painted
    Integrated Soft-close damper(Soft-close damper can be switched on/off)
  • Power Factor (LF) : 1000-2250
  • Opening Angle : 107 Degrees
  • Box Quantity : 1
  • Material : Steel
  • Finish Description : Silver
  • Warranty : Yes
  • ADA Friendly : Yes
  • Meets ANSI/BHMA Standards : Yes
  • Load Capacity : 4.0 - 24.9 lbs
