Hinges Lid and Flap Stays Kinvaro D/Tiomos Flap Hinge System

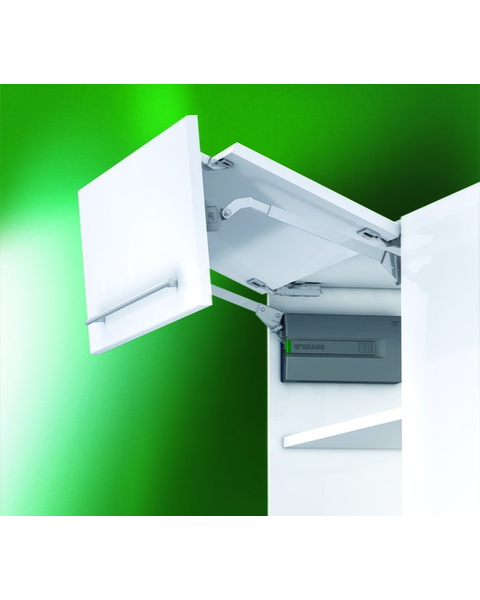

Loading from Primary Photo

F-20 Soft Close Bi-Fold Lift System for Cabinet Height 29-17/32, 35-7/16 Inch, Grey

Product Discontinuation AlertThis item has left our catalog. It's either upgraded to a newer model, didn't meet our high customer satisfaction standards, or the manufacturer said goodbye. But don't worry, CabinetParts is always here with top-notch alternatives.


All the product info you could ask for...

  • Size Info

  • Cabinet Height Range : 29-17/32 - 35-7/16 Inch (750-900 mm)
  • Flap Weight Including Handle : Depends on cabinet height (see specs sheet)
  • Length : 10-1/4 Inch
  • Key Features : Holds flap securely in any position
    Extremely smooth movement
    Adjustable spring force
    Integrated adjustable closing damper
    Flap with 3-dimensional adjustment - height, side, angle: Direct adjustment +/- 1.5mm
    Hinge with 3-dimensional adjustment - height, side, depth
    Wide range of applications for many different flap materials
    Fast, tool-free clip fitting of the front
    Face frame adapter available
    Pre-assembled Euro screws and positioning pins for easy mounting of the fitting to the side wall
    Extremely strong
    Weight 9.7 to 42.3 lb (4.4 to 19.2 kg)
    Range of flaps: Width: 15-3/4 - 47-1/4 Inch (400 - 1200mm), Height: 22-1/16 - 35-7/16 Inch (560 - 900mm)
  • Width : 1-5/8 Inch
  • Height Projection : 11-1/2 Inch

  • Manufacturer Info

  • Manufacturer : Grass
  • Manufacturer Part # : F152145247201

  • Other Important Info

  • Product Type : Lift System
  • Includes : Left hand & right hand Lifter with gray cover caps, (2) guide lever fixing brackets for wood doors with cover caps, and (2) break-away center hinges.
  • Product Series : Kinvaro
  • Collection : Bi-Fold Lifter
  • Category : Bi Fold
  • Spring Type : Spring D
  • Box Quantity : 1
  • Material : Steel
  • Finish Description : Grey
  • Warranty : Yes
  • ADA Friendly : Yes
  • Meets ANSI/BHMA Standards : Yes
  • Load Capacity : 19.0 - 42.3 lbs
