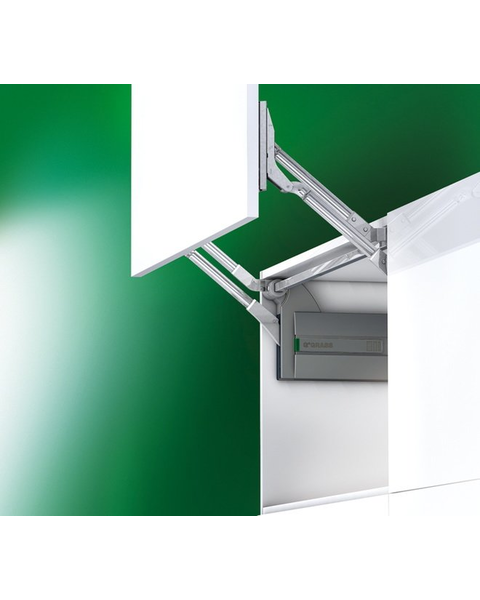

Loading from Primary Photo

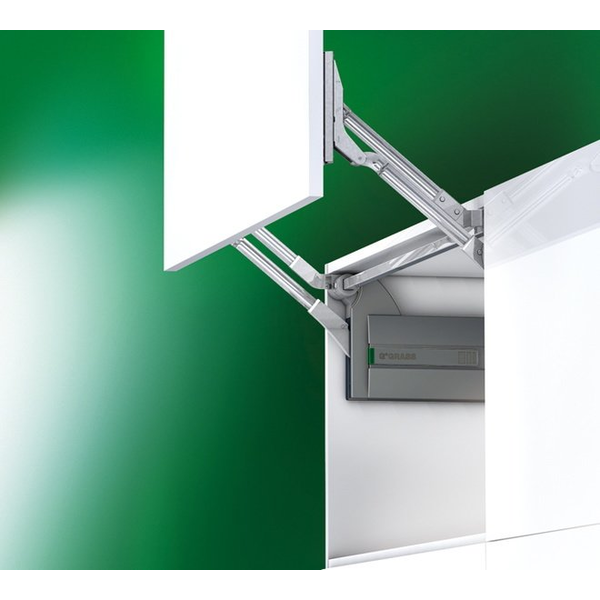

L-80 Parallel Lift System for Cabinet Height 16-15/16, 23-5/8 Inch, Spring A, Grey

Product Discontinuation AlertThis item has left our catalog. It's either upgraded to a newer model, didn't meet our high customer satisfaction standards, or the manufacturer said goodbye. But don't worry, CabinetParts is always here with top-notch alternatives.


All the product info you could ask for...

  • Size Info

  • Key Features : Holds flap securely in any position
    Extremely smooth movement
    Adjustable spring force
    Integrated adjustable closing damper
    Flap with 3-dimensional adjustment - height, side, angle: Direct adjustment +/- 1.5mm
    Hinge with 3-dimensional adjustment - height, side, depth
    Allows the use of cornices, pelmets, and attached lights
    Wide range of applications for many different flap materials
    Fast, tool-free clip fitting of the front
    Face frame adapter available
    Pre-assembled Euro screws and positioning pins for easy mounting of the fitting to the side wall
    Extremely strong
    Weight 4 to 32 lb (1.9 to 14.6 kg)
    Range of flaps: Width: 17-23/32 - 47-1/4 Inch (450 - 1200mm), Height: 13-25/32 - 23-5/8 Inch (350 - 600mm)
  • Cabinet Height Range : 16-15/16 - 23-5/8 Inch (430 - 600 mm)
  • Length : 10-1/4 Inch
  • Width : 1-13/32 Inch
  • Height Projection : 24-15/32 Inch

  • Manufacturer Info

  • Manufacturer : Grass
  • Manufacturer Part # : F152147443201

  • Other Important Info

  • Product Type : Lift System
  • Includes : Left hand & right hand Lifter with door mounting brackets and gray cover caps, (1) set of spring tensions, and (1) cross bar.
  • Product Series : Kinvaro
  • Collection : Parallel Lifter
  • Category : Parallel
  • Flap Weight Including Handle : 4.4-9.9 lbs (2-4.5 kg)
  • Spring Type : Spring A
  • Box Quantity : 1
  • Material : Steel
  • Finish Description : Grey
  • Warranty : Yes
  • ADA Friendly : Yes
  • Meets ANSI/BHMA Standards : Yes
  • Load Capacity : 4.4 - 9.9 lbs

  • Manufacturer Resources
