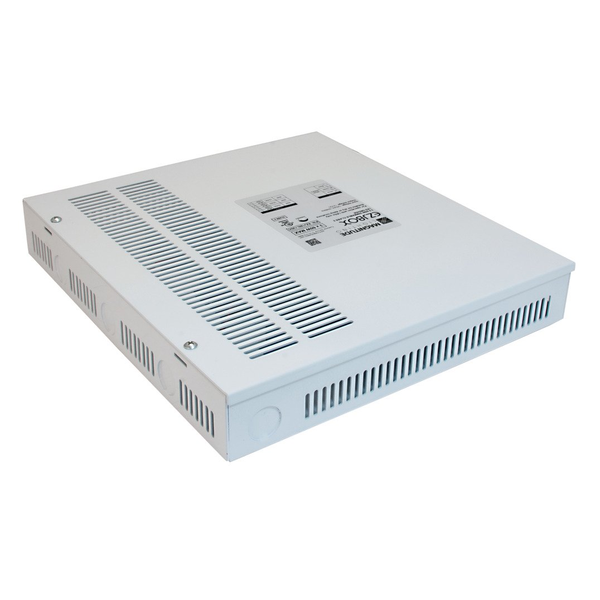

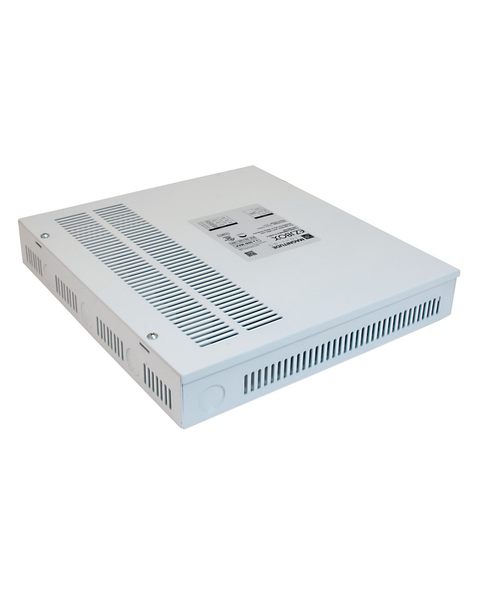

Loox High Output Dimmable 24V/288W LED Driver (3 x 96), Requires Direct "Hardwire" Connection to 120VAC Circuit and Lighting Leads

  Rating 4.0 | 1 Reviews in the past 24 months | Our Item Number HAF-833.02.928

Loox Dimmable LED Transformers are designed for seamless integration with home electrical systems, providing stable 12V or 24V power for your Loox LED lighting. These transformers are hardwired—both to the 120V home wiring and to the light leads—rather than using a plug-in connection. For easier installation, instead of hardwiring each light lead, you can connect a 2-way or 6-way distributor with a compatible 12V or 24V extension lead, allowing plug-and-play convenience for multiple fixtures. To choose the right transformer size, simply add up the wattage of each fixture, or calculate the total wattage based on the length of tape light being used. Unlike standard Loox drivers, these transformers are fully dimmable with common 120V LED wall dimmers, giving you smooth, reliable control of your cabinet, shelving, or accent lighting directly from your home’s standard dimmer switches

$
560
$700.00
SAVE 20%
Ends Sep 19
Need Help? Contact Us Now
Product Info Length: 280 mm , (11"), Width: 305 mm , (12"), Height: 54 mm , (2.13"), Output voltage: 24 VDC, Output current: 15.00 A, See more product details
Qty:


Large Project?

Orders $2500+ Qualify for Special Discounts.

Build your item list and get a Quick Quote

view bid cart
Compare this item

All the product info you could ask for...

  • Size Info

  • Key Features : 3 x 96 W independent output circuits
    Hard wired by licensed electrician only
    Dimmable with any standard MLV/CL/Incandescent (Triac) Forward Phase Dimmer Switch
    Class 2 low voltage power supply
    Auto-reset protection for short circuits and over-voltage
    Easy installation using terminal blocks
    8 W min per circuit
  • Length : 280 mm
    (11")
  • Width : 305 mm
    (12")
  • Height : 54 mm
    (2.13")

  • Manufacturer Info

  • Manufacturer : Hafele
  • Manufacturer Part # : 833.02.928

  • Other Important Info

  • Output voltage : 24 VDC
  • Output current : 15.00 A
  • Wattage : max. 288 W
  • Input voltage : 120 V
  • Material : Steel
  • Color : White
  • Product Type : Light Driver
  • Volts : 24V
  • Voltage : 24 V

  • Manufacturer Resources
