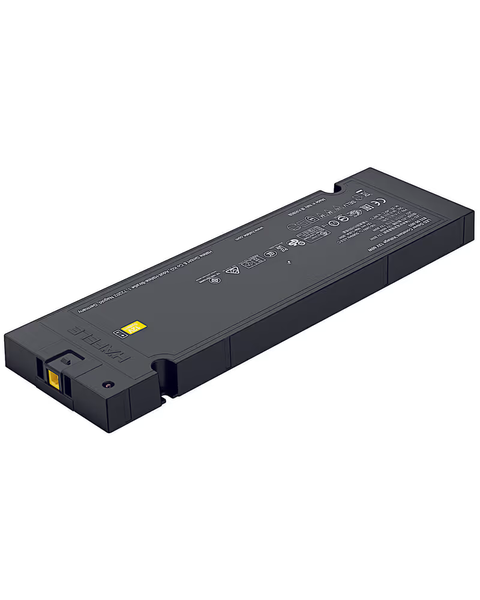

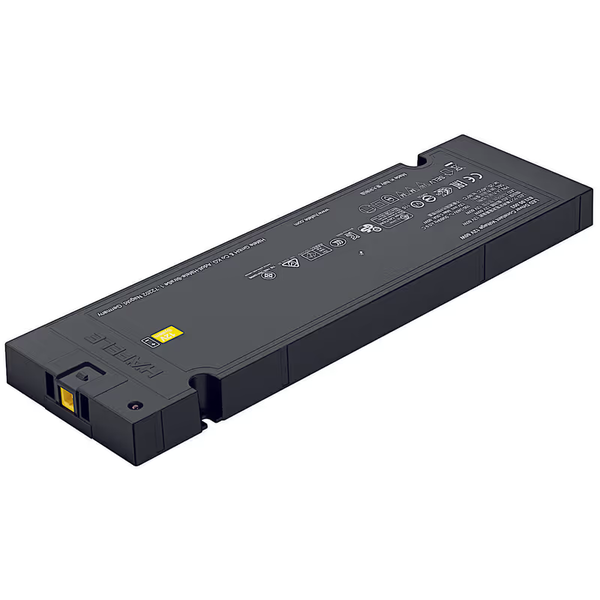

Loox Constant Voltage 12V/60W LED Driver with Single Light Lead Socket, Includes Power Cord

  Rating 4.0 | 1 Reviews in the past 24 months | Our Item Number HAF-833.74.913

Loox Constant Voltage Drivers provide the power needed for your Loox LED lighting system, delivering stable 12V or 24V output. Each driver has a single light output lead, which can connect directly to one fixture or to a 6-way distributor—either plugged straight into the driver or connected with a compatible 12V or 24V extension lead for added flexibility. To choose the right driver size, simply add up the wattage of each fixture, or calculate the total wattage based on the length of tape light being used. These drivers are not dimmable with standard 120V wall dimmers, but they can be controlled with low-voltage switches, dimmers, sensors, and even wireless remote controls when used with a distributor that has a switch function, making them a versatile choice for custom lighting projects.

$
78.40 Each
$98.00
SAVE 20%
Ends Nov 21
Need Help? Contact Us Now
Product Info Height: 5/8 Inch (16 mm), Width: 2-3/4 Inch (70 mm), Output Current: 5.00 A, Life Time: >50,000 Hours, Voltage: 12 V DC, See more product details
Qty:       Each


Large Project?

Orders $2500+ Qualify for Special Discounts.

Build your item list and get a Quick Quote

view bid cart
Compare this item

All the product info you could ask for...

  • Size Info

  • Length : 9-1/16 Inch (230 mm)
  • Height : 5/8 Inch (16 mm)
  • Width : 2-3/4 Inch (70 mm)
  • Installation Notes : Min. distance surrounding 50 mm. Provide for sufficient air supply and circulation. Please note max. ambient temperature. Overvoltage protection must be provided. Provide inspection opening.

  • Manufacturer Info

  • Manufacturer : Hafele
  • Manufacturer Part # : 833.95.003

  • Other Important Info

  • Efficiency at 115 V Full Load : 88%
  • Output Current : 5.00 A
  • Life Time : >50,000 Hours
  • Secondary side circuit : Parallel connection
  • Supplied with : 1 driver, Mounting accessories, US power cord
  • Product Type : LED Driver
  • Voltage : 12 V DC
  • Wattage : 60 W
  • Weight : 248g
  • Installation : For screwing on. Ensure that there is a sufficient air supply and circulation at the mounting location.
  • Output Power : 60 W
  • Standby Power Consumption : 0.5 W
  • Ambient Temperature : -25 to 40 Degrees C
  • Efficiency at 230 V Full Load : 89%
  • Power Consumption at 230 V No Load : 0.06 W
  • Key Features : Suitable for all of the world's power systems
    12 V driver with Generation Loox plug system
    Safety Class 2
    Degree of protection: IP20
  • Product Finish : Black
  • With Switching Function : No
  • Connections : 1 x socket, Loox5 2-pin 12 V box to box
  • Mains Frequency : 50-60 Hz
  • Mains Voltage : 100-240 V
  • Areas of Application : For 12 V device with Loox plug system for switch with Loox plug system, connecting to all of the world's most frequently used mains voltages and mains frequencies
  • Version : With overload protection
  • Replacement for : 833.74.913
